7507000
Official DistributorBy Rittal

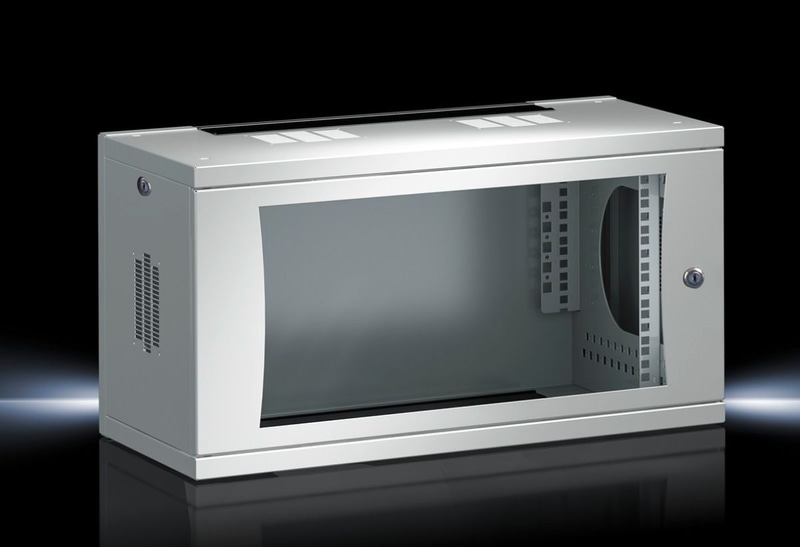

DK FlatBox, WHD: 600x358x400 mm, 6 U, with 482.6 mm (19") mounting angles
Supply includes
Flat-packed enclosure
1 wall section
2 basic supports
2 roof/base plates, with cut-outs for cable entry via brush strips
2 side panels, lockable
1 glazed door, lockable, security lock 3524 E, door catch freely selectable
Connection components for tool-free, fast assembly
Grounding kit for system-compatible grounding of all enclosure parts
19" profile rails
FlatBox
Dimensions
| Width | 600 mm |
| Height | 358 mm |
| Depth | 400 mm |
Material
| Viewing window | Single-pane safety glass, 3 mm |
| Version | with 19" mounting rails |
| Benefits | Tool-free quick mounting |
| Surface finish | Powder-coated |
| Color | RAL 7035 |
| Installation height for components | 6 U |
| Load Capacity | max. 300 N |
| Note | Max. installation depth: Depth - 58 mm to rear panel |
| Base material | Carbon steel |
| Weight/packaging unit | 17.845 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177551398 |
| ETIM 7.0 | EC002500 |
| ECLASS 8.0 | 27180208 |
