7501000
Official DistributorBy Rittal

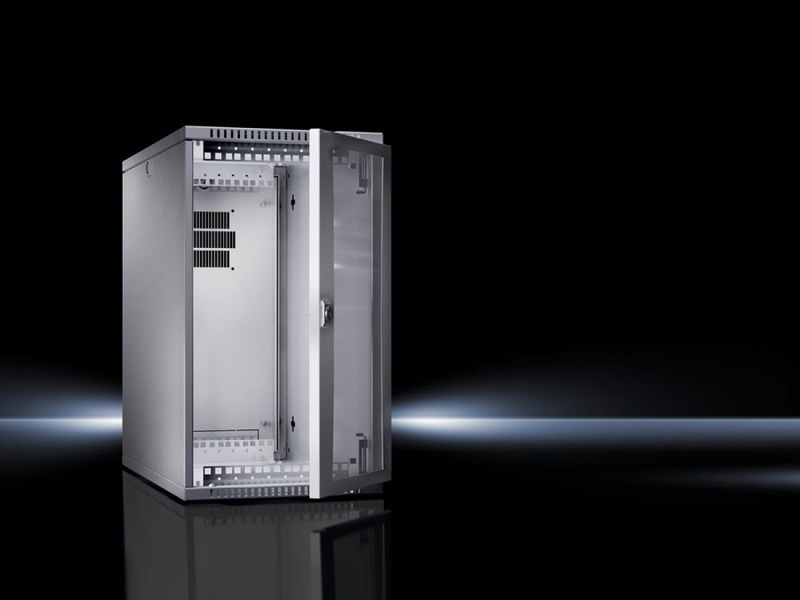

DK VerticalBox, WHD: 300x550x600 mm, 5 U
Supply includes
Housing with viewing door
Side panels (1 x fixed, 1 x slot-in) with vent slots
Knockouts for cable entry via roof or base
Slot-in rear panel with knockouts for cable entry and fan accommodation
19" mounting level, 5 U, horizontal front and rear, depth-variable, distance between levels 434 – 489 mm
Security lock 12321 on the door, side and rear panel
4 plastic feet, self-adhesive
Dimensions
| Width | 300 mm |
| Height | 540 mm |
| Depth | 600 mm |
Material
| Viewing window | Single-pane safety glass, 3 mm |
| Benefits | May be used as wall-mounted, under-desk or desktop applications |
| Surface finish | Powder-coated |
| Color | RAL 7035 |
| Installation height for components | 5 U |
| Base material | Carbon steel |
| Weight/packaging unit | 17.04 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177625426 |
| ETIM 7.0 | EC002500 |
| ECLASS 8.0 | 27180208 |
Why Proax for Rittal 7501000?
Proax is an authorized distributor of Rittal 7501000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 1 |
