7480300
Official DistributorBy Rittal
SKU
RIT7480300
Weight
6.275 kg

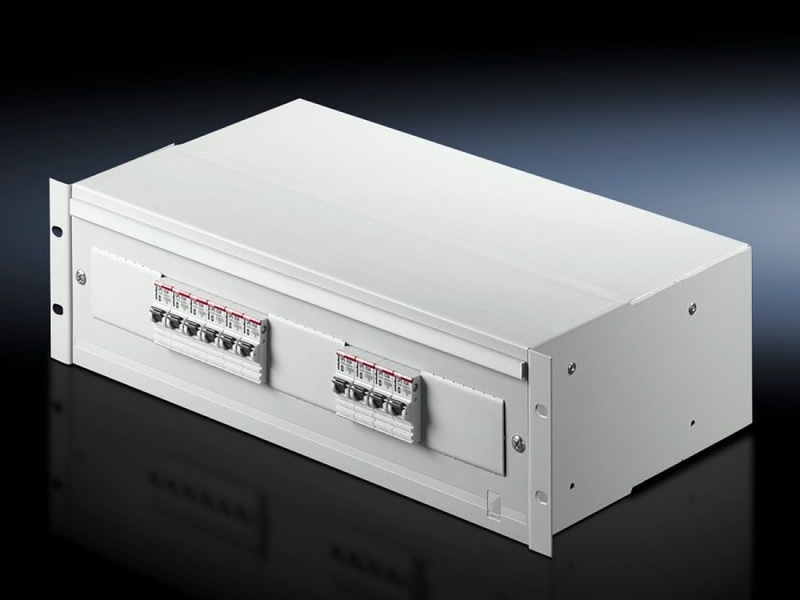

DK Energy-Box, 482.6 mm (19"), Pull-out
Supply includes
Energy box with plastic blanking covers.
Terminal
18 connection clamps, 16 mm²
4 connection clamps, 35 mm²
Strain relief
Identification strips
Brush strip
Technical Specifications
Dimensions
| Width | 482.6 mm |
| Depth | 220 mm |
| Color | RAL 7035 |
| Max. pitch units @ 18 mm | 22 |
| Height units | 3 U |
| Weight/packaging unit | 6.275 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177247529 |
| ETIM 7.0 | EC002006 |
| ECLASS 8.0 | 27189268 |
