7480035
Official DistributorBy Rittal
SKU
RIT7480035
Weight
2.554 kg

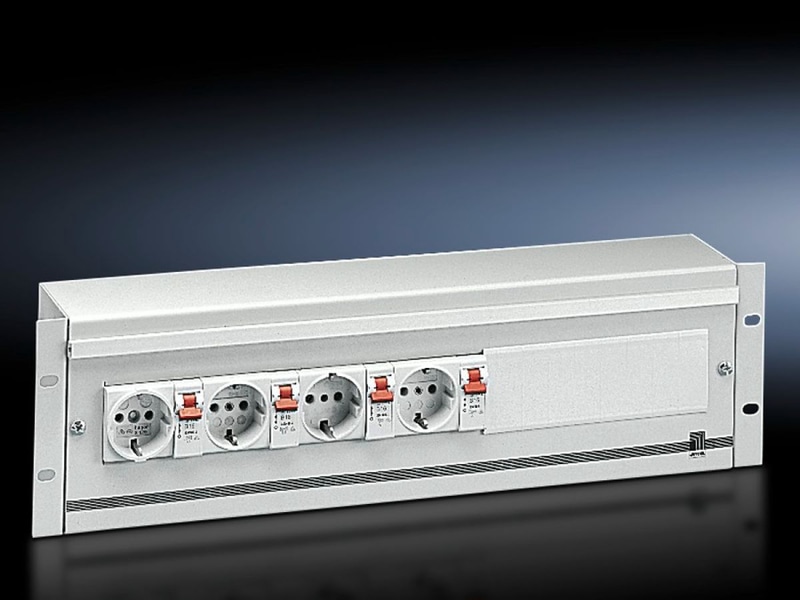

DK Energy-Box, WHD: 482,6 (19")x132,5x155 mm, max. 22 pitch units
Supply includes
Energy-box with depth-variable top hat rail for installed equipment to DIN 43880, sizes 1-3, with brush strip for cable entry at rear
Plastic hood including reserve panel cover (UL 94-V0)
44 connection clamps, 4 mm²
2 connection clamps, 16 mm²
2 blanking covers
12 clips for strain relief of the connection cables
Labeling strips, self-adhesive
Technical Specifications
Dimensions
| Width | 482.6 mm |
| Height | 132.5 mm |
| Depth | 155 mm |
| Color | RAL 7035 |
| Max. pitch units @ 18 mm | 22 |
| Note | Individual population with circuit-breakers at the factory available on request. |
| Height units | 3 U |
| Weight/packaging unit | 2.554 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177166004 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
Why Proax for Rittal 7480035?
Proax is an authorized distributor of Rittal 7480035 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
