7451000
Official DistributorBy Rittal
SKU
RIT7451000
Weight
1.72 kg

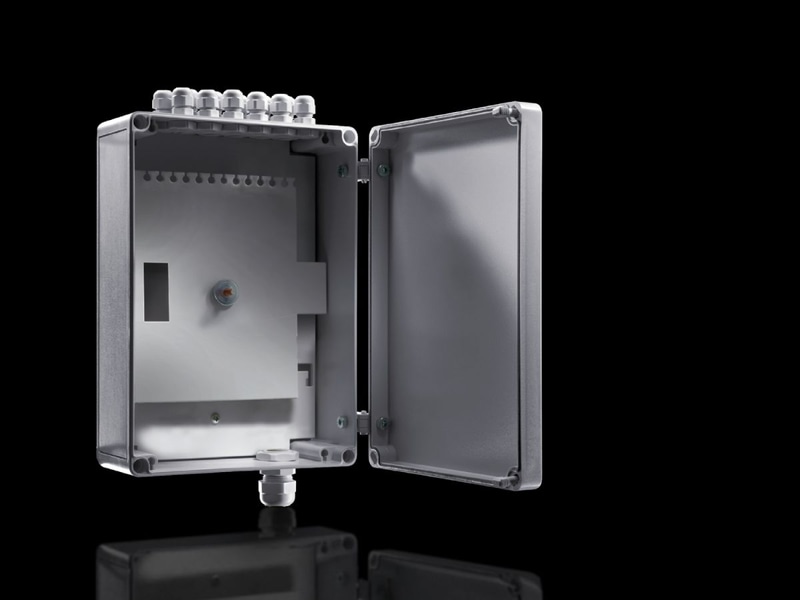

DK Small fibre-optic distributor, WHD: 180x254x90 mm, max. 24 fibres, with mounting plate, and splicing cassette accommodation
Supply includes
Housing with knockouts for cable glands
Hinged cover with seal
2 cover screws, prepared for a lead seal
Insulating bungs for wall mounting
Mounting plate
Dividing plate
12 cable glands M12 x 1.5
1 cable gland M20 x 1.5
Technical Specifications
Dimensions
| Width | 180 mm |
| Height | 254 mm |
| Depth | 90 mm |
Material
| Housing with cover | Fiberglass-reinforced polycarbonate |
| Cover screws | Polyamide |
| Insulating bungs | Polyamide |
| Benefits | Mounting plate with variable accommodation for up to two splicing cassettes (cassette width variable from 92 to 120 mm) and integral anti-twist guard |
| Color | RAL 7035 |
| Max. no. of fibers when using patch panels | 24 |
| Base material | Polycarbonate |
| Protection category IP to EN 60 529 | IP 66 |
| Weight/packaging unit | 1.72 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177130562 |
| ETIM 7.0 | EC002500 |
| ECLASS 8.0 | 27180208 |
Why Proax for Rittal 7451000?
Proax is an authorized distributor of Rittal 7451000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
