7320570
Official DistributorBy Rittal
SKU
RIT7320570
Weight
0.267 kg
Series CMC III Sensors
DK CMC-TC Motion sensor

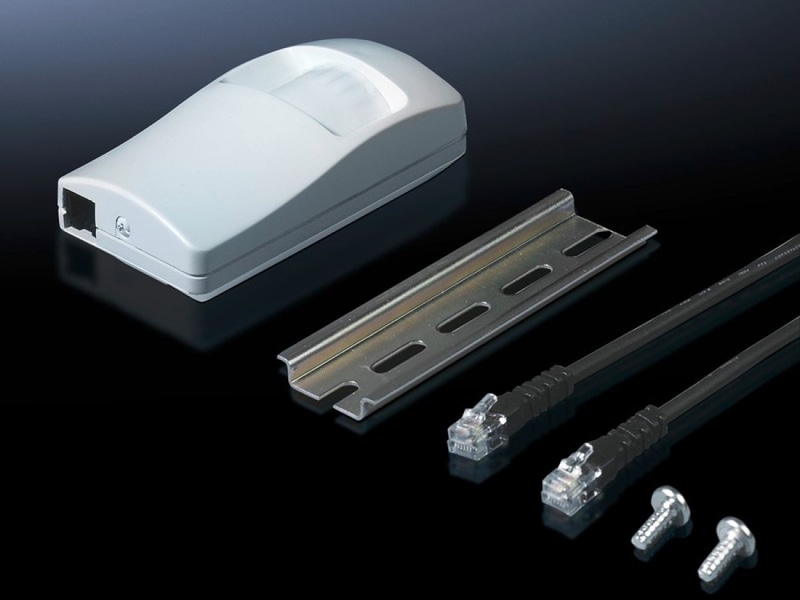

Supply includes
Sensor
Mounting plate
Assembly components
Connection cable with connector
Mounting clips for support rails
Assembly components
CMC III Sensors
To monitor a range of parameters in enclosures or rooms.
Technical Specifications
Dimensions
| Width | 59 mm |
| Height | 102 mm |
| Depth | 32 mm |
Material
| Front | Smooth |
| Housing | Textured |
| Version | Motion sensor |
| Benefits | Fast connection and automatic detection via plug & play |
| Applications | Enclosure monitoring in IT, industry and facility management |
| Function principle | Settings can be made via the CMC III Processing Unit or the IoT interface. |
| Color | Housing: White |
| Connection to the CAN bus | Indirectly via CMC III Can-Bus Interfaces |
| Interfaces | RJ12 |
| Numbers of subscribers of IoT Interface (max.) | 32 |
| Number of participants PU compact (max.) | 4 |
| Number of participants PU (max.) | 32 |
| Note | Delivery times on request. |
| Measuring technique | Infrared (IR) Detector |
| Operating temperature range | 5 °C...45 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Weight/packaging unit | 0.267 kg |
| Customs tariff number | 85311095 |
| EAN | 4028177367432 |
| ETIM 7.0 | EC002627 |
| ECLASS 8.0 | 27189253 |
