7320530
Official DistributorBy Rittal
SKU
RIT7320530
Weight
0.492 kg
This product is Not Cancellable/Not Returnable
Series CMC III Sensors
DK CMC-TC Access sensor

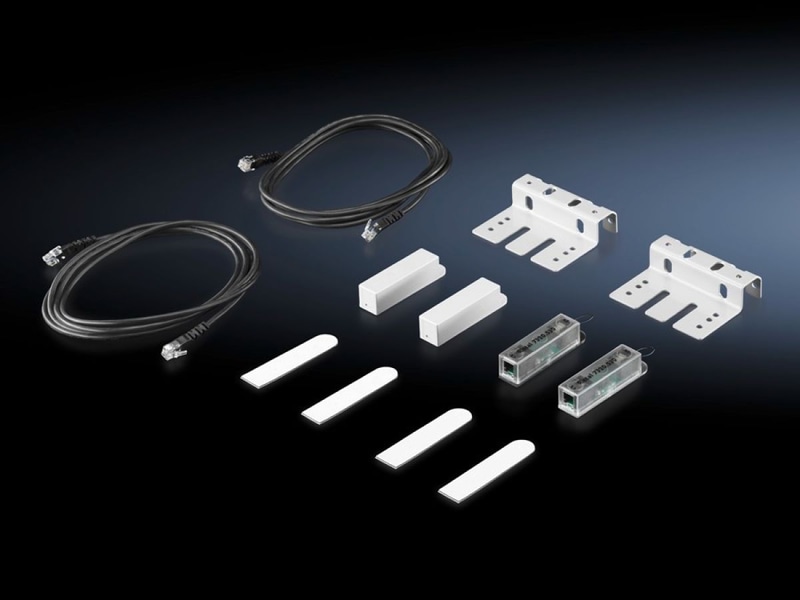

Supply includes
Sensor
Mounting plate
Assembly components
Connection cable with connector
Jumper plug
Mounting Bracket
Assembly components
CMC III Sensors
To monitor a range of parameters in enclosures or rooms.
Technical Specifications
Dimensions
| Width | 78 mm |
| Height | 20 mm |
| Depth | 18 mm |
Material
| Front | Smooth |
| Housing | Textured |
| Version | Access sensor |
| Benefits | Fast connection and automatic detection via plug & play |
| Applications | Enclosure monitoring in IT, industry and facility management |
| Function principle | Settings can be made via the CMC III Processing Unit or the IoT interface. |
| Color | Housing: transparent |
| Connection to the CAN bus | Indirectly via CMC III Can-Bus Interfaces |
| Interfaces | RJ12 |
| Quantity of participants PU compact (max.) | 4 |
| Quantity of participants PU (max.) | 32 |
| Number subscribers per PDU note | The number of participants increases, as up to 5 sensors can be connected in series. However, sensors connected in series emit only one signal. |
| Note | The sensor is connected to the CMC III via a CMC III CAN bus sensor. |
| Measuring technique | Reed Contact, Magnet |
| Operating temperature range | 5 °C...45 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Packaging unit | 2 pc(s). |
| Weight/packaging unit | 0.492 kg |
| Customs tariff number | 85319000 |
| EAN | 4028177367272 |
| ETIM 7.0 | EC002627 |
| ECLASS 8.0 | 27189253 |
