7284135
Official DistributorBy Rittal
SKU
RIT7284135
Weight
0.654 kg

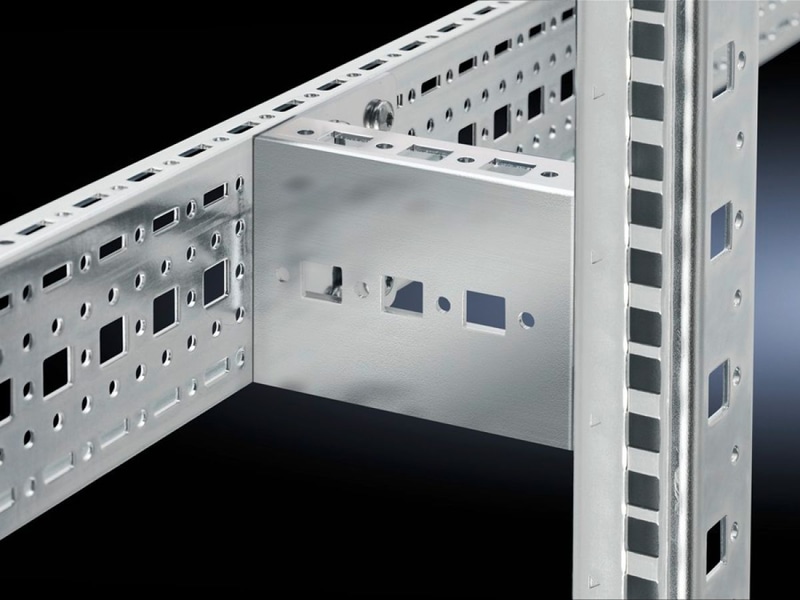

DK Mounting angles additional fastening attachment, 482.6 mm (19"), For L-shaped mounting angles, For W: 800 mm, For TS
Supply includes
Assembly components
Technical Specifications
Installation dimensions
| Installation depth for components | 482.6 mm |
| Installation width for components | 19" |
Suitable for
| Enclosure Type | TS |
| Width | 800 mm |
| Applications | For upgrading existing TS applications |
| Material | Carbon steel |
| Surface finish | Zinc-plated |
| Mounting tip | The 17 x 73 mm TS system chassis is also required for the inner mounting level |
| Packaging unit | 2 pc(s). |
| Weight/packaging unit | 0.654 kg |
| Customs tariff number | 73182900 |
| EAN | 4028177167230 |
| ETIM 7.0 | EC002625 |
| ECLASS 8.0 | 27189234 |
Why Proax for Rittal 7284135?
Proax is an authorized distributor of Rittal 7284135 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
