7257005
Official DistributorBy Rittal
SKU
RIT7257005
Weight
0.918 kg

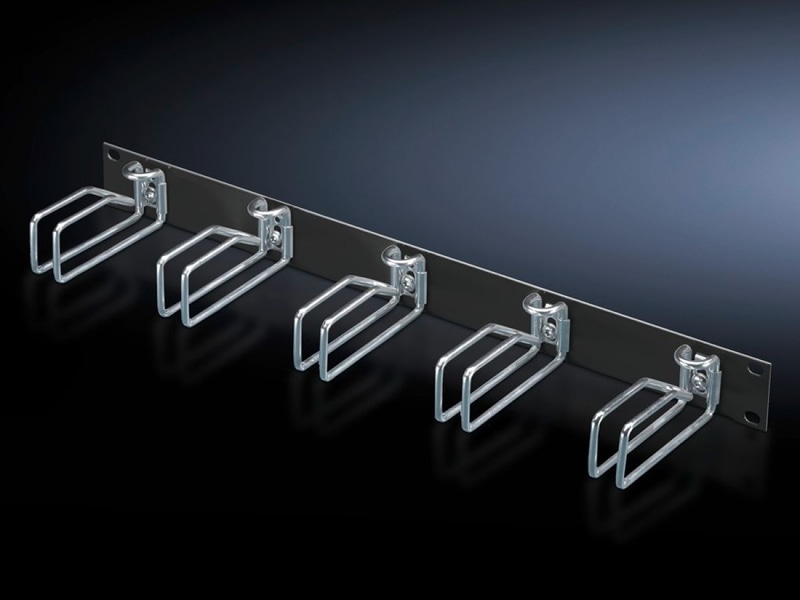

DK Cable management panel, 1 U, with steel rings
Cable management panel with steel brackets
For horizontal management of patch cables, with 5 cable routing brackets.
Technical Specifications
Bracket dimensions
| Ring depth | 105 mm |
| Ring height | 43 mm |
Dimensions
| Width | 482.6 mm |
Material
| Panel | Carbon steel |
| Bracket | Steel |
Surface finish
| Panel | spray-finished |
| Brackets | Zinc-plated |
| Color | RAL 9005 |
| Note | The sizes given are external dimensions. |
| Height units | 1 U |
| Weight/packaging unit | 0.918 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177492080 |
| ETIM 7.0 | EC000322 |
| ECLASS 8.0 | 27400604 |
