7240300
Official DistributorBy Rittal

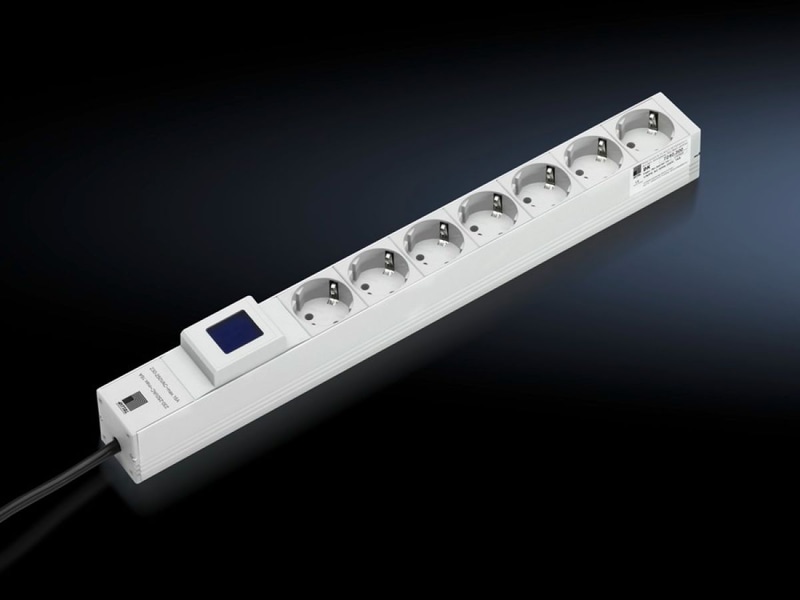

The outlet strip with ammeter measures the power consumption of the connected consumers. The 482.6 mm (19") long outlet strip can optionally be mounted on the 19" mounting frame, on the housing frame or at the rear of the wall-mounted distributor. The installation bracket can be mounted in four different positions, allowing for variable mounting. The outlet strip can be used on any profile with 25 mm hole pattern, no additional mounting accessories are required.
Supply includes
Socket strip
Two installation brackets
Fasteners
With 3 m connection cable (wire end ferrules)
Dimensions
| Height | 45 mm |
| Depth | 50 mm |
| Length | 482.6 mm |
Material
| Socket inserts | Polycarbonate |
| Version | With ammeter |
| Outlets | 7 x D, ground contact (type F, CEE 7/4) |
| Length of connection cable | 3 m |
| Mounting dimensions | 464.1 mm |
| Rated operating voltage | 230 V AC, 50 Hz |
| Rated voltage | 230 V AC, 50 Hz |
| Rated current (max.) | 16 A |
| Installation options | Components with a 25 mm pitch pattern |
| Socket color | Gray |
| Weight/packaging unit | 0.86 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177558144 |
| ETIM 7.0 | EC000330 |
| ECLASS 8.0 | 27142604 |
