7240201
Official DistributorBy Rittal
SKU
RIT7240201
Weight
0.61 kg
This product is Not Cancellable/Not Returnable

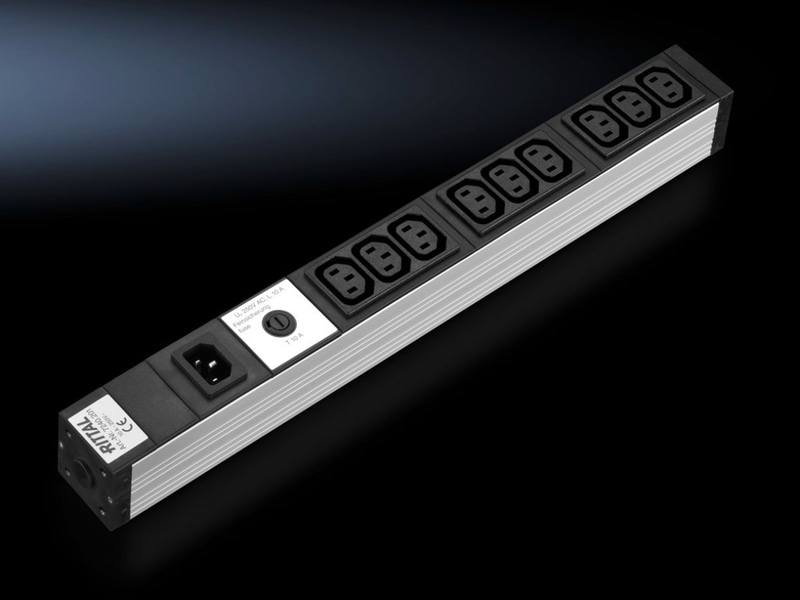

DK Socket strip, IEC 320 socket C13, 9-way, 250 V, 10 A, LHD: 482,6x44x44 mm, For IEC 320 connectors with IEC 320 input
Supply includes
Socket strip
2 mounting brackets
Assembly components
Integrated micro-fuse 5 x 20 mm (10 A)
Without connection cables, must be provided by customer
Technical Specifications
Dimensions
| Height | 44 mm |
| Depth | 44 mm |
| Length | 482.6 mm |
Material
| Socket inserts | Polycarbonate |
| Benefits | Practical, universal fastening |
| Version | With IEC 320 input |
| Outlets | 9 x Non-Heating Apparatus Socket C13 |
| Length of connection cable | 2 m |
| Connection cable (type) | H05VV-F3G1.5 |
| Mounting dimensions | 452.5 mm |
| Mounting dimension tolerance | ± 25 mm |
| Rated operating voltage | 230 V AC, 50 Hz |
| Rated voltage | 230 V AC, 50 Hz |
| Rated current (max.) | 10 A |
| Type of connection (electrical) | IEC 60320: C14 |
| Installation options | Components with a 25 mm pitch pattern |
| Note | Depending on the application, it is advisable to keep some load current in reserve to prevent nuisance tripping as a result of peak inrush currents |
| Standards | Sockets: DIN VDE 0620-1 |
| Socket color | Black |
| Weight/packaging unit | 0.61 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177237544 |
| ETIM 7.0 | EC000330 |
| ECLASS 8.0 | 27142604 |
