7220600
Official DistributorBy Rittal
SKU
RIT7220600
Weight
0.944 kg
Series Routing Bracket
DK Shunting ring
Supply includes
Assembly components

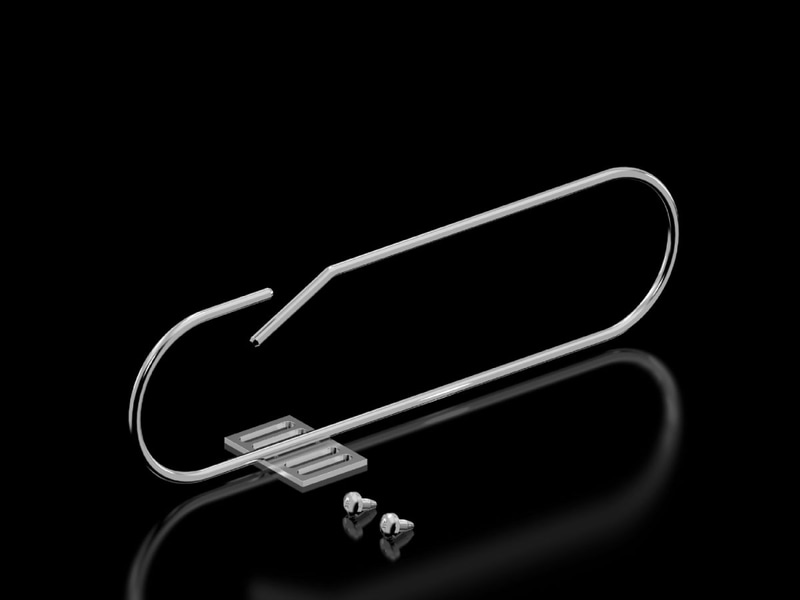

Routing Bracket
To accommodate large quantities of cables, shunting ring for side attachment to 482.6 mm (19") profiles and mounting frames in 800 mm wide network enclosures.
Technical Specifications
Dimensions
| Height | 90 mm |
| Depth | 330 mm |
| Material | Steel |
| Surface finish | Zinc-plated |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 0.944 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177305489 |
| ETIM 7.0 | EC000322 |
| ECLASS 8.0 | 27400604 |
Why Proax for Rittal 7220600?
Proax is an authorized distributor of Rittal 7220600 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
