7200001
Official DistributorBy Rittal
SKU
RIT7200001
Weight
1.191 kg

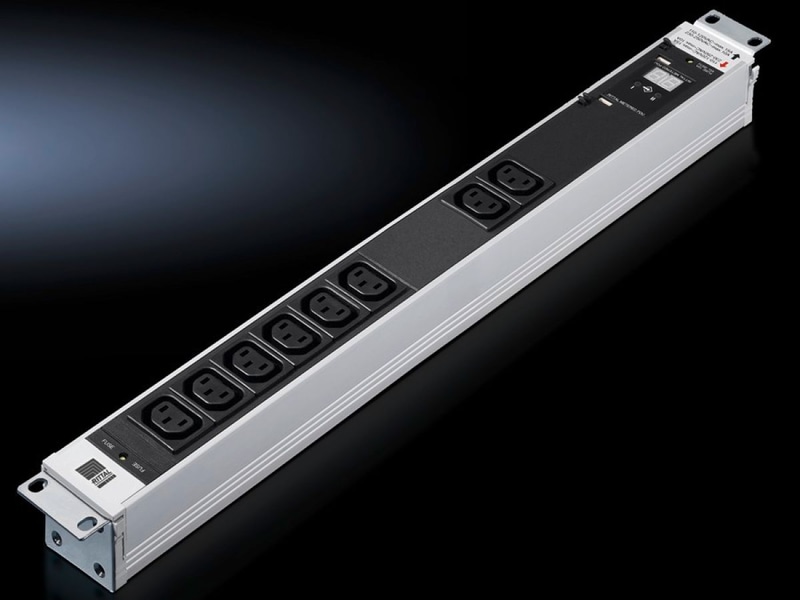

DK Power Control Unit (PCU), Wieland GST 18, 8-way, 24 V (DC), 16 A, WHD: 465x44,5x60 mm, 1 HE
Supply includes
1 socket strip PCU 1 U (max. 10 A per socket strip)
1 bus cable
1 connector for power supply
Technical Specifications
Dimensions
| Height | 44.5 mm |
| Depth | 60 mm |
| Length | 465 mm |
| Function principle | 2-digit local LED 7-segment current display on the PCU. Legibility rotates according to the installation position. |
| Material | Aluminum chassis with plastic cover |
| Outlets | 8 x Wieland GST 18 |
| Rated voltage | 24 V DC |
| Rated current (max.) | 16 A |
| Switchable outputs | Yes |
| Weight/packaging unit | 1.191 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177485341 |
| ETIM 7.0 | EC000330 |
| ECLASS 8.0 | 27142604 |
