7111224
Official DistributorBy Rittal
SKU
RIT7111224
Weight
0.728 kg

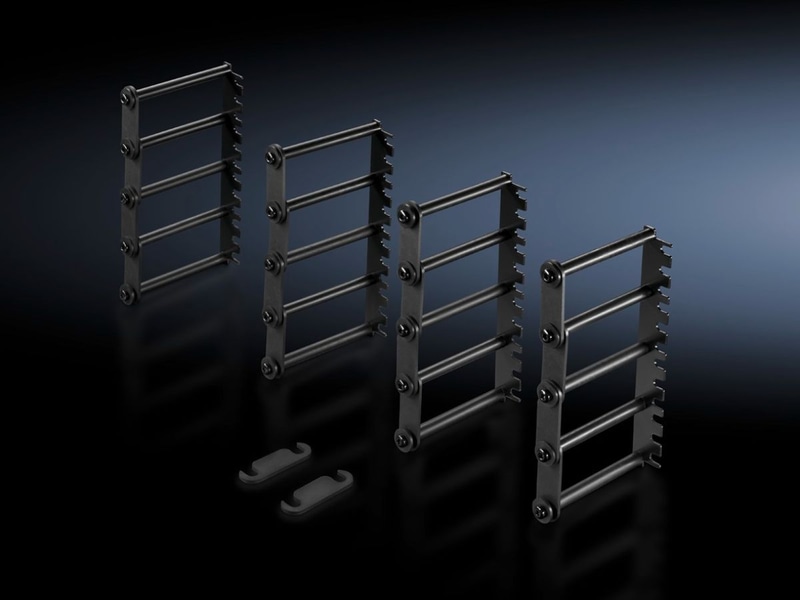

DK Cable routing bars, 482.6 mm (19") attachment, 4 U
Supply includes
Cable Routing Bars
Connection combs
Cable routing bars, 19" attachment
For structured routing of entire cable bundles, 19" attachment, connection comb.
Technical Specifications
Material
| Support | Carbon steel |
| Cable routing bars, connection combs | Plastic UL 94-V0 |
| Applications | For horizontal cable routing within the distributor level. Our unique open mounting hole design allows installation of the cable routing bars through the 19" mounting rails with the mounting screws of the installed components. |
| Color | RAL 9005 |
| Number connection combs | 2 |
| Note | Size of individual chambers (HxD) approx. 34 x 100 mm |
| Height units | 4 U |
| Packaging unit | 4 pc(s). |
| Weight/packaging unit | 0.728 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177550377 |
| ETIM 7.0 | EC000322 |
| ECLASS 8.0 | 27400604 |
Why Proax for Rittal 7111224?
Proax is an authorized distributor of Rittal 7111224 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
