7030150
Official DistributorBy Rittal
SKU
RIT7030150
Weight
0.415 kg
Series CMC III Sensors

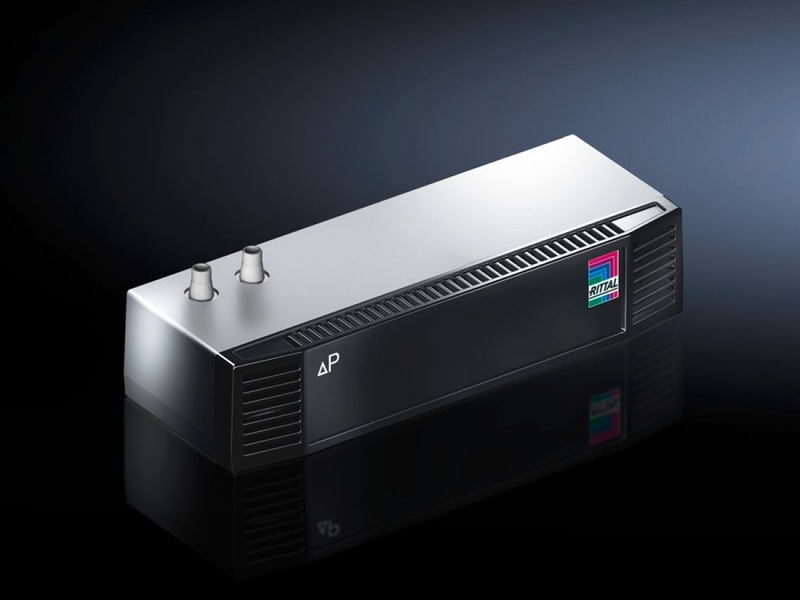

DK CMC III Analog differential pressure sensor, WHD: 110x30x40 mm
Supply includes
Sensor
Mounting plate
Assembly components
Analog differential pressure sensor
CMC III Sensors
To monitor a range of parameters in enclosures or rooms.
Technical Specifications
Color
| Front | RAL 9005 |
| Housing | RAL 7035 |
Dimensions
| Width | 110 mm |
| Height | 30 mm |
| Depth | 40 mm |
Material
| Front | Smooth |
| Housing | Textured |
| Version | Analog differential pressure sensor |
| Benefits | Fast connection and automatic detection via plug & play |
| Applications | Enclosure monitoring in IT, industry and facility management |
| Function principle | Settings can be made via the CMC III Processing Unit or the IoT interface. |
| Connection to the CAN bus | Direct |
| Interfaces | 2 x RJ45 CAN bus |
| Numbers of subscribers of IoT Interface (max.) | 32 |
| Number of participants PU compact (max.) | 4 |
| Number of participants PU (max.) | 32 |
| Measuring technique | Differential Pressure Measurement |
| Operating temperature range | 0 °C...55 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Weight/packaging unit | 0.415 kg |
| Customs tariff number | 85319000 |
| EAN | 4028177659537 |
| ETIM 7.0 | EC002627 |
| ECLASS 8.0 | 27189253 |
Why Proax for Rittal 7030150?
Proax is an authorized distributor of Rittal 7030150 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
