7030120
Official DistributorBy Rittal
SKU
RIT7030120
Weight
0.176 kg
Series CMC III Sensors

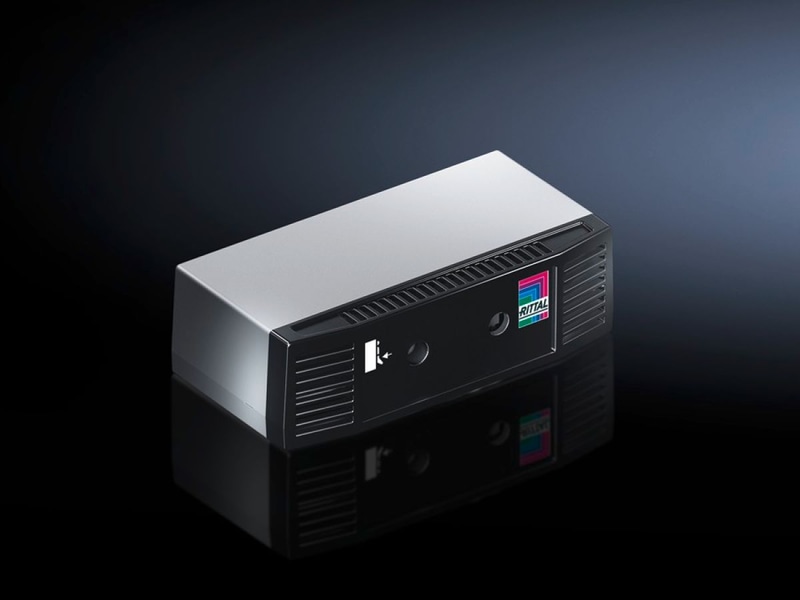

DK CMC III Infrared access sensor, WHD: 80x28x40 mm
Supply includes
Sensor
Mounting plate
Assembly components
Infrared access sensor
CMC III Sensors
To monitor a range of parameters in enclosures or rooms.
Technical Specifications
Color
| Front | RAL 9005 |
| Housing | RAL 7035 |
Dimensions
| Width | 80 mm |
| Height | 30 mm |
| Depth | 40 mm |
Material
| Front | Smooth |
| Housing | Textured |
| Version | Infrared access sensor |
| Benefits | Fast connection and automatic detection via plug & play |
| Applications | Enclosure monitoring in IT, industry and facility management |
| Function principle | Settings can be made via the CMC III Processing Unit or the IoT interface. |
| Connection to the CAN bus | Direct |
| Interfaces | 2 x RJ45 CAN bus |
| Numbers of subscribers of IoT Interface (max.) | 32 |
| Number of participants PU compact (max.) | 4 |
| Number of participants PU (max.) | 32 |
| Note | The CMC III infrared access sensor uses infrared light to monitor whether the enclosure door is open or closed |
| Measuring technique | Infrared Diode with Receiver and Reflector |
| Operating temperature range | 0 °C...55 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Weight/packaging unit | 0.176 kg |
| Customs tariff number | 85319000 |
| EAN | 4028177659506 |
| ETIM 7.0 | EC002627 |
| ECLASS 8.0 | 27189253 |
Why Proax for Rittal 7030120?
Proax is an authorized distributor of Rittal 7030120 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
