7030111
Official DistributorBy Rittal
SKU
RIT7030111
Weight
0.206 kg
Series CMC III Sensors

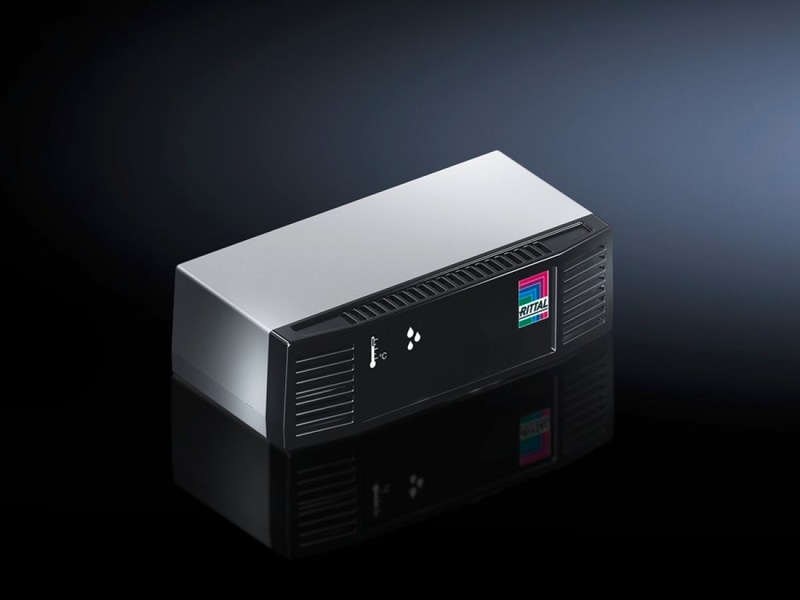

DK CMC III Temperature/humidity sensor, WHD: 80x28x40 mm
Supply includes
Sensor
Mounting plate
Assembly components
Temperature/humidity sensor
CMC III Sensors
To monitor a range of parameters in enclosures or rooms.
Technical Specifications
Color
| Front | RAL 9005 |
| Housing | RAL 7035 |
Dimensions
| Width | 80 mm |
| Height | 30 mm |
| Depth | 40 mm |
Material
| Front | Smooth |
| Housing | Textured |
| Version | Temperature/humidity sensor |
| Benefits | Fast connection and automatic detection via plug & play |
| Applications | Enclosure monitoring in IT, industry and facility management |
| Function principle | Settings can be made via the CMC III Processing Unit or the IoT interface. |
| Connection to the CAN bus | Direct |
| Interfaces | 2 x RJ45 CAN bus |
| Numbers of subscribers of IoT Interface (max.) | 32 |
| Number of participants PU compact (max.) | 4 |
| Number of participants PU (max.) | 32 |
| Measuring technique | Temperature Sensor Chip |
| OUT_HUMIDITY_MEASUREMENT_RANGE_INTERNAL | 5 ‐ 95 % |
| Operating temperature range | 0 °C...55 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| OUT_TEMPERATURE_MEASUREMENT_RANGE_EXTERNAL_C | 0 ‐ 55 °C |
| Weight/packaging unit | 0.206 kg |
| Customs tariff number | 90269000 |
| EAN | 4028177659490 |
| ETIM 7.0 | EC002627 |
| ECLASS 8.0 | 27189253 |
