7030071
Official DistributorBy Rittal
SKU
RIT7030071
Weight
0.45 kg
Series CMC III Mounting Units

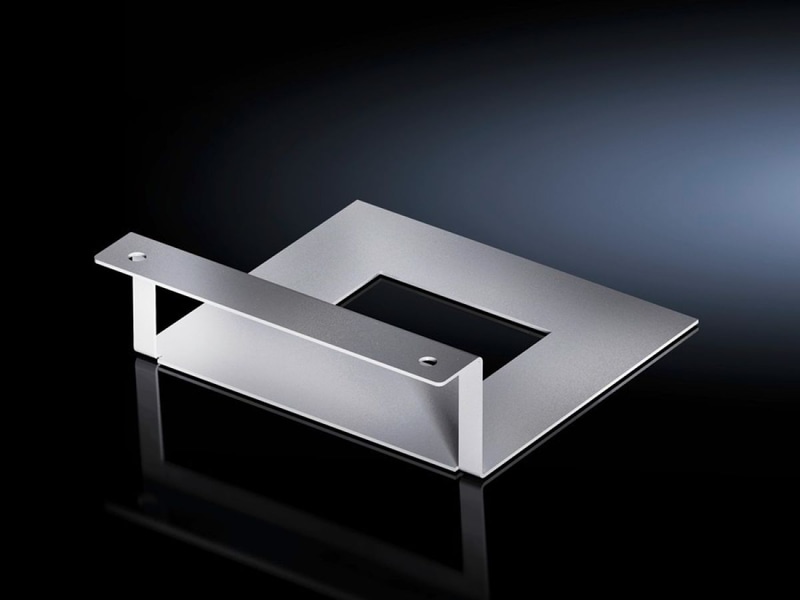

DK CMC III mounting units, WHD: 170x1 Ux160 mm
Supply includes
Assembly components
CMC III Mounting Units
To accommodate CMC III components.
Technical Specifications
Dimensions
| Width | 170 mm |
| Depth | 160 mm |
| Version | For PU, PU Compact, control units, CMC III CAN bus unit and CMC III power pack. |
| Benefits | Fire behavior: Self-extinguishing to UL 94 HB |
| Applications | Fixture for CMC III components. |
| Function principle | Can hold one unit and is mounted on the enclosure frame |
| Material | Carbon steel Carbon steel |
| Surface finish | zinc-plated |
| Number of locations | 1 |
| Installation options | Enclosure frame |
| Note | To accommodate one CMC III unit and for mounting it onto the enclosure frame |
| Weight/packaging unit | 0.45 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177662711 |
| ETIM 7.0 | EC002627 |
| ECLASS 8.0 | 27189253 |
