7030070
Official DistributorBy Rittal
SKU
RIT7030070
Weight
1.02 kg
This product is Not Cancellable/Not Returnable
Series CMC III Mounting Units

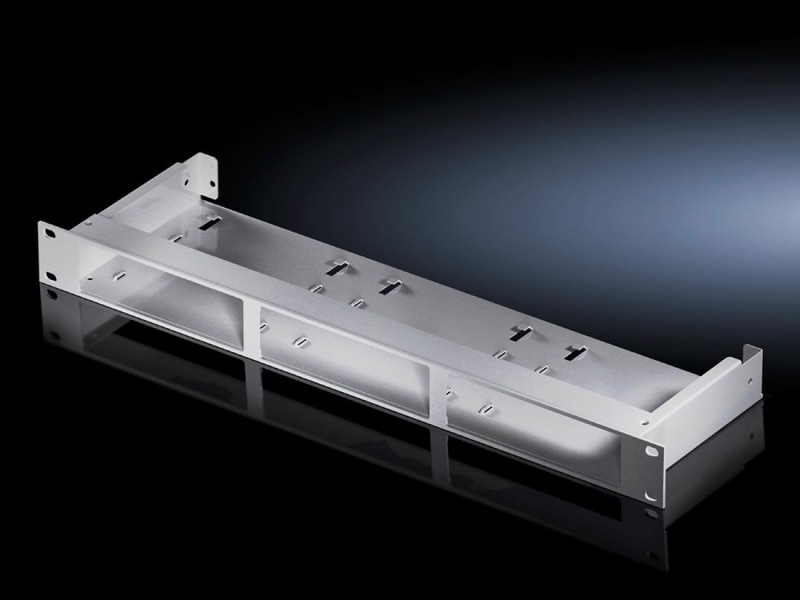

DK CMC III mounting units, Accommodation of CMC III components, For 482.6 mm (19"), WHD: 138x40x132 mm
Supply includes
Incl. blanking cover.
CMC III Mounting Units
To accommodate CMC III components.
Technical Specifications
Dimensions
| Width | 482.6 mm |
| Depth | 141 mm |
| Version | For PU, PU Compact, control units, CMC III CAN bus unit and CMC III power pack. |
| Benefits | Fire behavior: Self-extinguishing to UL 94 HB |
| Applications | Fixture for CMC III components. |
| Function principle | CMC III Processing Unit |
| Material | Carbon steel |
| Surface finish | Zinc plated, clear-chromated |
| Number of locations | 3 |
| Installation options | 482.6 mm (19") level |
| Weight/packaging unit | 1.02 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177659391 |
| ETIM 7.0 | EC002627 |
| ECLASS 8.0 | 27189253 |
Why Proax for Rittal 7030070?
Proax is an authorized distributor of Rittal 7030070 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
