7030030
Official DistributorBy Rittal
SKU
RIT7030030
Weight
0.54 kg
This product is Not Cancellable/Not Returnable

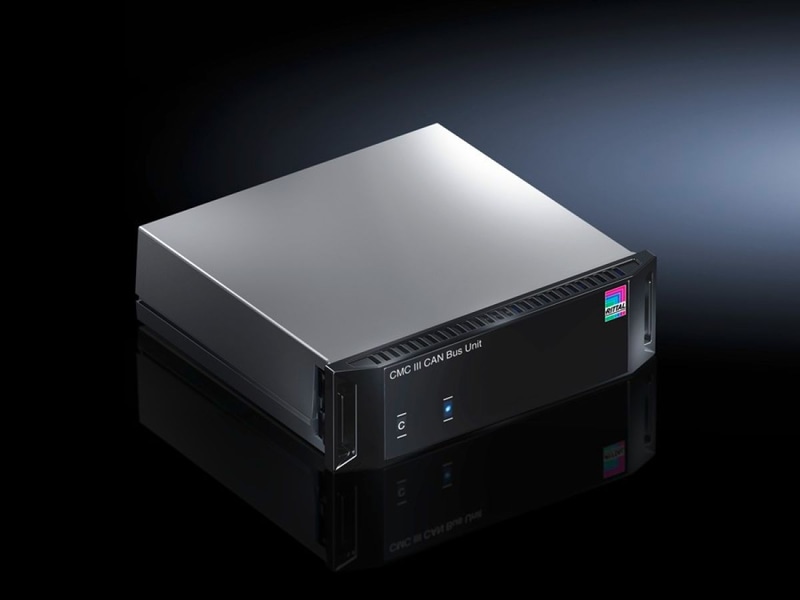

DK CMC III CAN bus unit, For connecting PSM / PCU to CMC III, WHD: 138x40x132 mm, Compatible to CMC-TC units
Supply includes
CMC III CAN bus unit
Installation and Short User's Guide
Assembly components for surfaces
Mounting clips for support rails
Mounting accessories
Mounting clips for support rails
Technical Specifications
Color
| Housing | RAL 7035 |
| Front | RAL 9005 |
Dimensions
| Width | 138 mm |
| Height | 40 mm |
| Depth | 132 mm |
Material
| Front | Smooth |
| Housing | Textured |
| Version | For connecting up to eight PSM or PCU 19" socket strips |
| Benefits | Fast connection and automatic detection via plug & play |
| Applications | Monitoring and controlling PSM socket strips and PCU 19" socket strips in enclosures in the fields of IT, industry and buildings technology. |
| Function principle | The CMC III CAN bus unit is automatically detected by the CMC III processing unit. |
| Interface bus system | 2 x RJ45 CAN bus |
| Interfaces | 2 x RJ45 |
| Number of participants PU compact (max.) | 1 |
| Number of participants PU (max.) | 4 |
| Note | For each CAN bus unit, an additional power pack 7030.060 is required. |
| Operating temperature range | 0 °C...55 °C |
| Ambient humidity (non-condensing) | 5...95 % |
| Weight/packaging unit | 0.54 kg |
| Customs tariff number | 85311095 |
| EAN | 4028177659353 |
| ETIM 7.0 | EC002627 |
| ECLASS 8.0 | 27189253 |
