6900300
Official DistributorBy Rittal

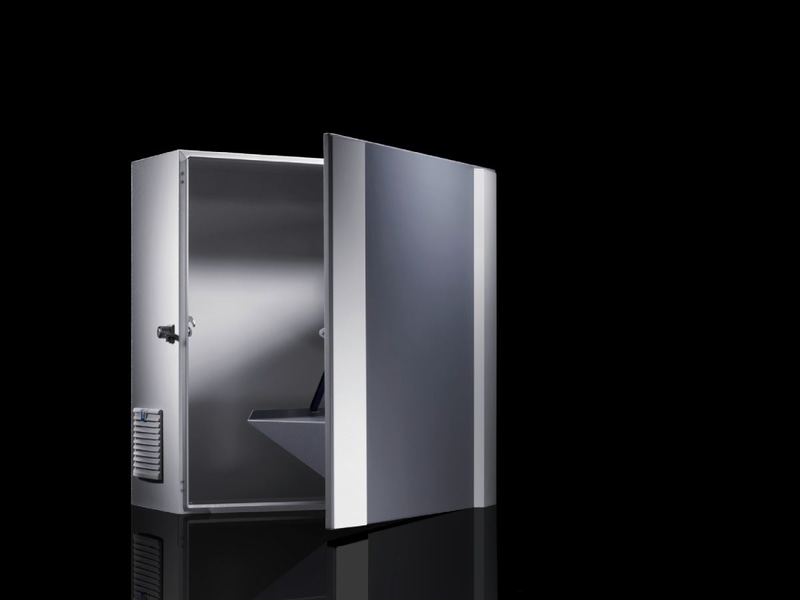

IW Industrial workstation, PC enclosure housing, for Tower-PC
Supply includes
Housing of all-round solid construction
R/h door catch
Door with base screw-fastened on the inside
Side cam lock
Double-bit lock insert
Rear panel with two cut-outs for use of the connector gland supplied loose
Cable gland M20, brass, nickel-plated
Outlet filter fitted in left side panel
Fan-and-filter unit fitted in right side panel, 55 m³/h, 230 V, 50/60 Hz
Door-operated switch, supply socket for 230 V power supply, socket strip with 3 sockets and overvoltage protection
Color
| Housing | RAL 7035 |
| Door | RAL 7015 |
| Design strips | RAL 7035 |
Dimensions
| Width | 760 mm |
| Height | 760 mm |
| Depth | 300 mm |
Material
| Housing | Carbon steel |
| Door | Carbon steel |
| Design strips | Aluminum |
Surface finish
| Housing | Powder-coated, textured paint |
| Door | Powder-coated |
| Version | Roof prepared for mounting worktop or for mounting underneath surfaces Roof prepared for mounting cast feet or for mounting on surfaces |
| Protection category IP to IEC 60 529 | IP 54 in conjunction with connector gland supplied loose |
| Standard | NEMA 12 in conjunction with connector gland supplied loose |
| Base material | Aluminum |
| Weight/packaging unit | 36 kg |
| EAN | 4028177438712 |
| ETIM 7.0 | EC002502 |
| ECLASS 8.0 | 27180501 |
Why Proax for Rittal 6900300?
Proax is an authorized distributor of Rittal 6900300 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
| Pack Size | 1 |
