6539010
Official DistributorBy Rittal
SKU
RIT6539010
Weight
12.1 kg
This product is Not Cancellable/Not Returnable

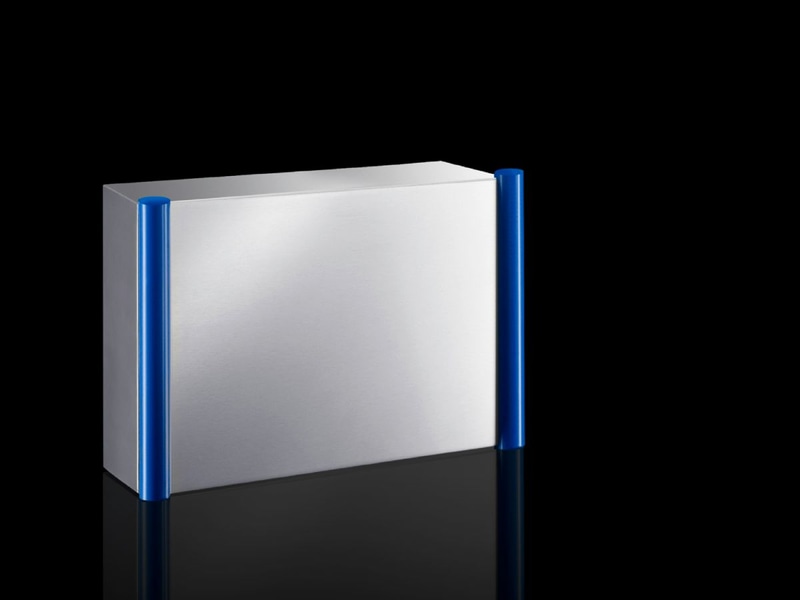

CP Command panel housing with door, WHD: 600x400x150 mm, Stainless steel 1.4301
Supply includes
Housing of all-round solid construction
Cut-out and reinforcement for support arm system CP 40 stainless steel
Fastener with guide plate
Door with sealing frame and side handle strips
Lock: 3 mm double-bit
Command panel housing with door Stainless steel
Operating door for enclosure made from stainless steel 1.4301, (AISI 304) with handle strips made from food-grade plastic. Can be combined with CP40 support arm system, stainless steel.
Technical Specifications
Dimensions
| Width | 600 mm |
| Height | 400 mm |
| Depth | 150 mm |
Material
| Housing and door | Stainless steel 1.4301 (AISI 304) |
| Handle strips | Plastic approved for use with foodstuffs, dyed blue |
| Surface finish | Brushed, grain 400 |
| Color | Handle strips: Similar to RAL 5002 |
| Protection category IP to IEC 60 529 | IP 66 |
| Protection category NEMA | NEMA 12 |
| Note | The support arm connection and door catch may be swapped over by rotating the enclosure |
| Base material | Stainless steel |
| Note on Model No. | Compatible mounting plate 5050.436 with shipping bag 5050.507 |
| Weight/packaging unit | 12.1 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177220393 |
| ETIM 7.0 | EC002504 |
| ECLASS 8.0 | 27180505 |
Why Proax for Rittal 6539010?
Proax is an authorized distributor of Rittal 6539010 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
