6450010
Official DistributorBy Rittal
SKU
RIT6450010
Weight
6.52 kg

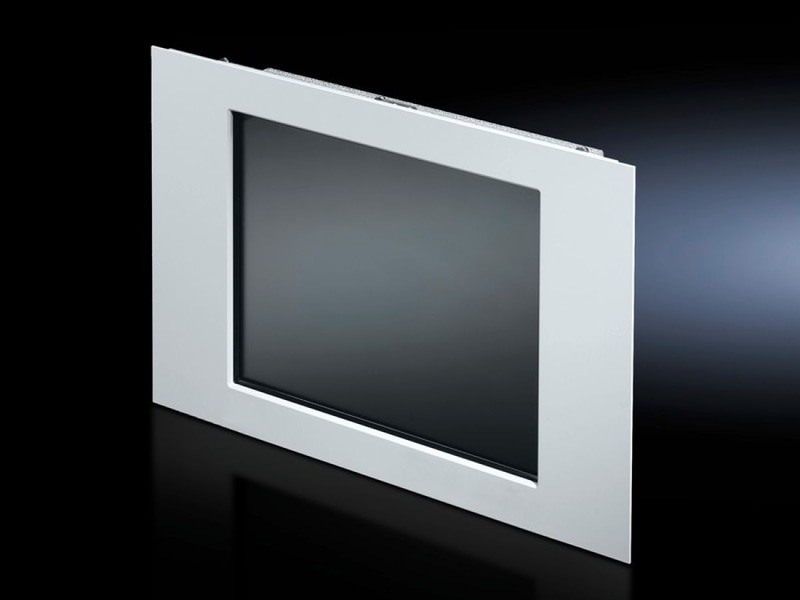

SM TFT monitor, 15"
Supply includes
Seal
Hex nuts (for installation in surfaces)
VGA cable
Threaded bolt M5, for rear mounting
Touch variants additionally with integrated connection cable and CD-ROM driver
With anti-reflection coated safety glass screen.
Technical Specifications
Dimensions
| Width | 430 mm |
| Height | 343 mm |
| Version | Without touchscreen |
| Benefits | High-quality industrial design |
| Material | Front frame: Aluminum |
| Surface finish | Powder-coated |
| Color | RAL 7035 |
| Interfaces | VGA (D-SUB HD 15-pole) |
| Operating temperature range | 0 °C...50 °C |
| Storage temperature range | -40 °C...85 °C |
| Display Brightness | 400 cd/m² |
| Contrast ratio | 700 : 1 |
| Diagonal | 15" |
| Lamp life | > 50,000 h |
| On Screen Display (OSD) | Operating buttons at the rear |
| Reading angle left/right | 80 ° |
| Display resolution | 1024 x 768 pixels |
| Rated power Pel | with DC: 15 W |
| H-Sync. (min./max.) | 31.4 ‐ 80 kHz |
| V-Sync. (min./max.) | 60 ‐ 75 Hz |
| Number of colors | 16.7 |
| Resolution of controller | VGA |
| Weight/packaging unit | 6.52 kg |
| Customs tariff number | 85286200 |
| EAN | 4028177389991 |
| ETIM 7.0 | EC001428 |
| ECLASS 8.0 | 19200201 |
