6106500
Official DistributorBy Rittal
SKU
RIT6106500
Weight
24 kg
This product is Not Cancellable/Not Returnable
This item is ineligible for free shipping due to its size/weight.
Series Pedestal, open

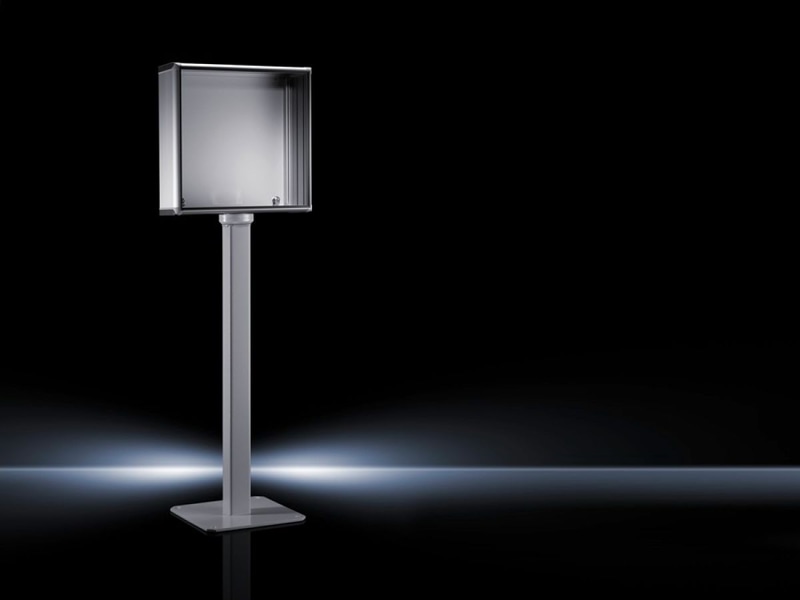

CP Pedestal, open, CP 60, WHD: 400x1095x400 mm
Pedestal, open
Open pedestal for retrospective cable entry with pre-assembled connectors.
Technical Specifications
Dimensions
| Height | 1,095 mm |
| Material | Steel |
| Surface finish | Spray-finished |
| Color | RAL 7035 |
| Width base plate | 400 mm |
| Height base plate | 10 mm |
| Depth base plate | 400 mm |
| Material thickness pedestal | 3 mm |
| Pedestal tube cross-section depth | 73 mm |
| Pedestal tube cross-section width | 86 mm |
| Load capacity, static | 40 kg |
| Weight/packaging unit | 24 kg |
| Customs tariff number | 73269098 |
| EAN | 4028177698468 |
| ETIM 7.0 | EC002534 |
| ECLASS 8.0 | 27182604 |
Why Proax for Rittal 6106500?
Proax is an authorized distributor of Rittal 6106500 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
