5508210
Official DistributorBy Rittal
SKU
RIT5508210
Weight
86.8 kg
This item is ineligible for free shipping due to its size/weight.

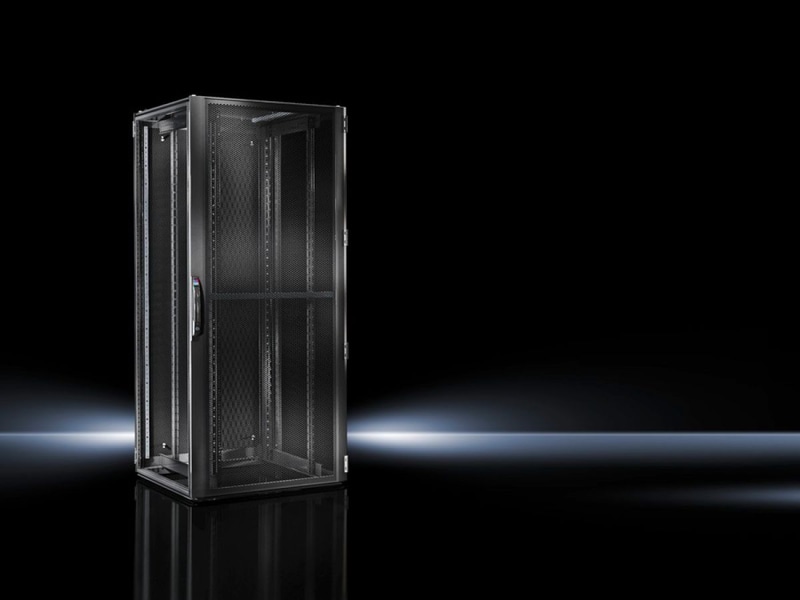

TS-IT T1 RAL9005 WHD 600x2000x1000 42U
Technical Specifications
Color
| Enclosure frame and panels | RAL 9005 |
| Interior installation | RAL 9005 |
Dimensions
| Width | 600 mm |
| Height | 2,000 mm |
| Depth | 1,000 mm |
Surface finish
| Enclosure frame | Dipcoat-primed |
| Interior installation | Dipcoat-primed |
| Doors and roof | Dipcoat-primed, powder coated |
| Material | Carbon steel Aluminum |
| Basic color | RAL 7035 |
| Height units | 42 U |
| Distance between levels as delivered | 745 mm |
| Design doors | Vented |
| Design of 19" mounting level(s) | Profile rails, 482.6 mm (19") |
| Load Capacity | 15,000 N |
| Note | The door-opening angle may vary depending on site requirements or applications |
| Base material | Carbon steel |
| Weight/packaging unit | 86.8 kg |
| EAN | 4028177678200 |
| ETIM 7.0 | EC002499 |
| ECLASS 8.0 | 27180207 |
Why Proax for Rittal 5508210?
Proax is an authorized distributor of Rittal 5508210 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
