3456500
Official DistributorBy Rittal
SKU
RIT3456500
Weight
0.435 kg
Series Conductor terminal
SV Conductor connection clamp, 2,5-16 mm², clamping area WH: 8x8 mm, for bar thickness 10 mm

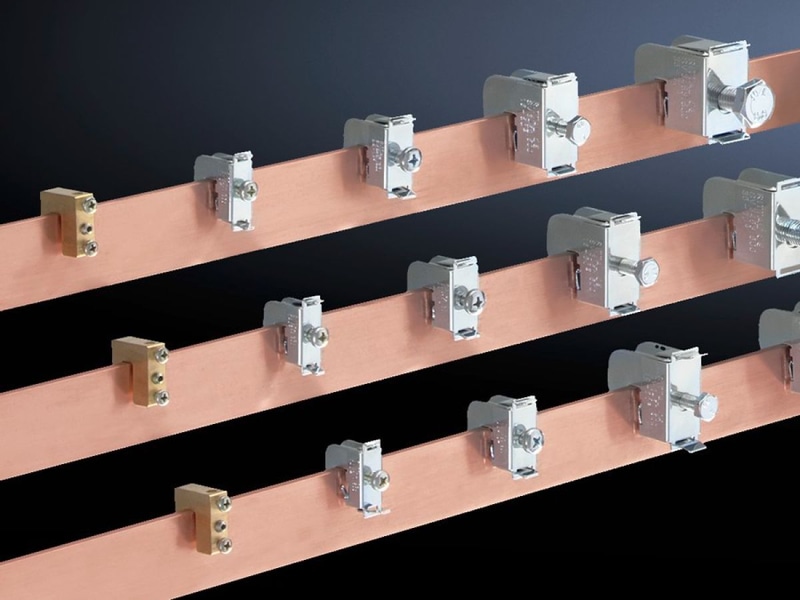

Conductor terminal
For connecting round conductors and laminated copper bars.
Technical Specifications
| Material | Carbon steel |
| Surface finish | Zinc-plated, passivated |
| Clamping area for laminated copper bars (W x H) | 8 x 8 mm |
| Note | Wire end ferrules should be used with fine stranded wire conductors |
| Connection for round conductor cross-sections | 2.5 ‐ 16 mm² |
| For busbar thickness | 10 mm |
| Packaging unit | 15 pc(s). |
| Weight/packaging unit | 0.435 kg |
| Customs tariff number | 85369010 |
| EAN | 4028177042742 |
| ETIM 7.0 | EC000001 |
| ECLASS 8.0 | 27141146 |
