Official DistributorBy Rittal
SKU
Weight
70 kg

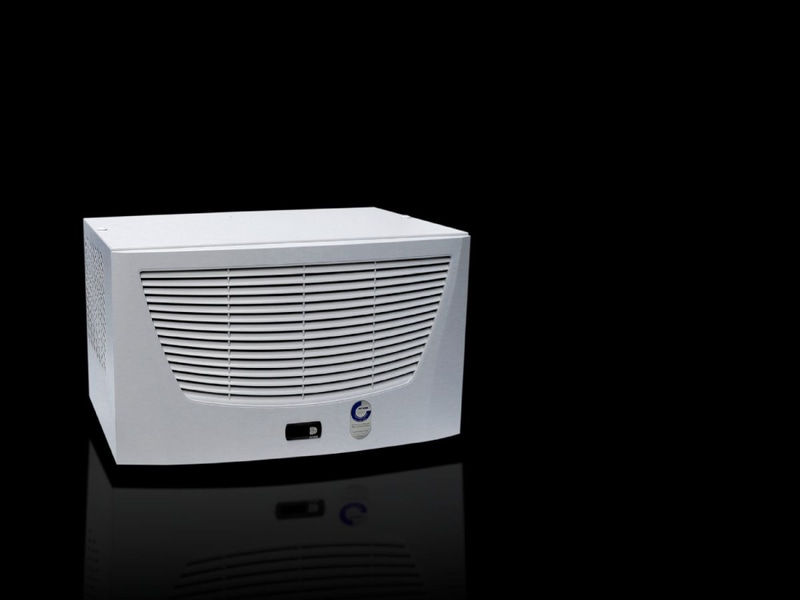

SK cooling unit Blue e, roof-mounted, 3 kW, 400-460 V, 3~, 50/60 Hz, Sheet steel, WHD: 796 x 470 x 580 mm
Supply includes
Nano-coated condenser
Integral electric condensate evaporation
Wired ready for connection (plug-in terminal strip)
Drilling template
Fasteners
TopTherm Blue e Roof-Mounted Cooling Unit Total cooling output 0.50 - 4.00 kW
Energy-efficient Blue e roof-mounted cooling units in output categories 500 W to 4,000 W with e-Comfort controller integrated as standard, RiNano coating on the condenser and electrical condensate evaporation.
Technical Specifications
Air throughput (unimpeded air flow)
| External circuit | 3,450 m³/h |
| Internal circuit | 1,280 m³/h |
Dimensions
| Width | 796 mm |
| Height | 470 mm |
| Depth | 580 mm |
Energy efficiency ratio (EER) 50/60 Hz L35 L35
| Refrigeration factor L35 L35 (EER) 50 Hz | 2.56 |
| Refrigeration factor L35 L35 (EER) 60 Hz | 2.23 |
Rated current max.
| At 50 Hz | 3.4 A |
| At 60 Hz | 3.4 A |
Rated power Pel
| Power consumption L35 L35/50 Hz | 1.17 kW |
| Power consumption L35 L35/60 Hz | 1.48 kW |
| Power consumption L35 L50/50 Hz | 1.42 kW |
| Power consumption L35 L50/60 Hz | 1.76 kW |
Refrigerant/cooling medium
| Refrigerant | R134a |
| Quantity | 1.6 kg |
| Global Warming Potential (GWP) | 1,430 |
| CO₂ equivalent (CO₂e) | 2.29 t |
Start-up current (max.)
| At 50 Hz | 8 A |
| At 60 Hz | 9 A |
Total cooling output to DIN EN 14511
| Cooling output L35 L35/50 Hz | 3 kW |
| Cooling output L35 L35/60 Hz | 3.3 kW |
| Cooling output L35 L50/50 Hz | 2.2 kW |
| Cooling output L35 L50/60 Hz | 2.5 kW |
| Benefits | May be linked to the IoT interface via the Blue e IoT adapter for cooling units with an output of 500 W or higher and e-comfort controllers |
| Material | Carbon steel |
| Color | RAL 7035 |
| Rated operating voltage | 400 V, 3~, 50 Hz |
| Version | roof-mounted |
| Protection category IP to EN 60 529 | External circuit, IP 34 |
| Type of connection (electrical) | Plug-in terminal strip |
| Duty cycle | 100 % |
| Temperature control | e-Comfort Controller (factory setting +35 °C) |
| Operating temperature range | 10 °C...55 °C |
| Storage temperature range | -40 °C...70 °C |
| Setting range | 20 °C...55 °C |
| Permissible operating pressure (p. max.) | 28 bar |
| Pre-fuse | Motor circuit-breaker: 6.3...10 A |
| Note | Due to its low noise level, the roof-mounted cooling unit 3273.500 is also suitable for use in office applications. |
| Weight/packaging unit | 70 kg |
| Customs tariff number | 84158200 |
| EAN | 4028177323308 |
| ETIM 7.0 | EC000855 |
| ECLASS 8.0 | 27180704 |
Why Proax for Rittal 3386540?
Proax is an authorized distributor of Rittal 3386540 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
