3366540
Official DistributorBy Rittal
SKU
RIT3366540
Weight
46 kg
This product is Not Cancellable/Not Returnable
This item is ineligible for free shipping due to its size/weight.
This product has been discontinued

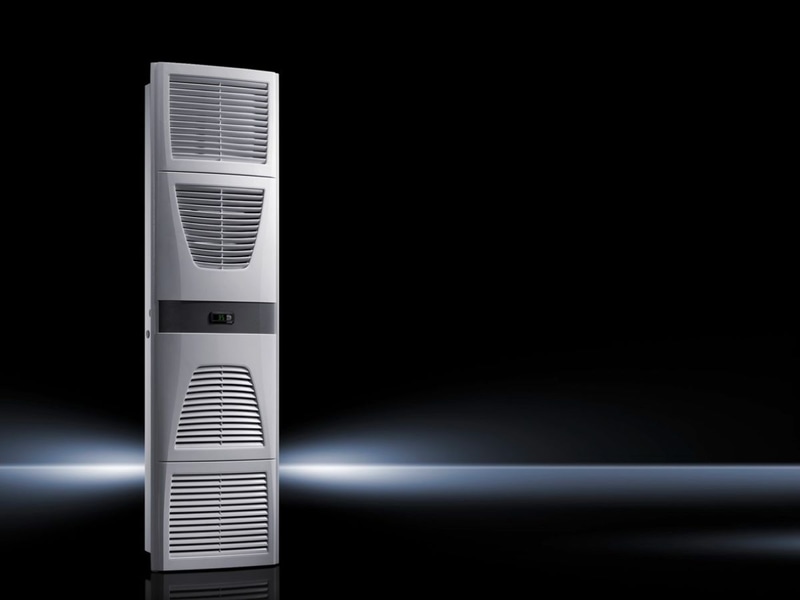

SK cooling unit Blue e, wall-mounted, slimline, 1.6 kW, 400-460 V, 3~, 50/60 Hz, Sheet steel, WHD: 435 x 1590 x 205 mm
Supply includes
Nano-coated condenser
Wired ready for connection (plug-in terminal strip)
Drilling template
Fasteners
Integral electric condensate evaporation
Assembly components for “Installation” mounting
Wall-Mounted Cooling Unit TopTherm Blue e 0.3 - 4 kW
Energy efficient Blue e wall mounting cooling units in performance classes 300 W to 4000 W, with RiNano coating on condenser, and with integrated electrical condensation evaporation for 1000 W and above. Available in the special formats “horizontal” and “flat”.
Technical Specifications
Air throughput (unimpeded air flow)
| External circuit | 910 m³/h |
| Internal circuit | 860 m³/h |
Dimensions
| Width | 435 mm |
| Height | 1,590 mm |
| Depth | 205 mm |
Energy efficiency ratio (EER) 50/60 Hz L35 L35
| Refrigeration factor L35 L35 (EER) 50 Hz | 1.9 |
| Refrigeration factor L35 L35 (EER) 60 Hz | 1.52 |
Rated current max.
| At 50 Hz | 2.7 A |
| At 60 Hz | 2.9 A |
Rated power Pel
| Power consumption L35 L35/50 Hz | 0.9 kW |
| Power consumption L35 L35/60 Hz | 1.05 kW |
| Power consumption L35 L50/50 Hz | 1.08 kW |
| Power consumption L35 L50/60 Hz | 1.25 kW |
Refrigerant/cooling medium
| Refrigerant | R134a |
| Quantity | 0.7 kg |
| Global Warming Potential (GWP) | 1,430 |
| CO₂ equivalent (CO₂e) | 1 t |
Start-up current (max.)
| At 50 Hz | 8 A |
| At 60 Hz | 8.8 A |
Total cooling output to DIN EN 14511
| Cooling output L35 L35/50 Hz | 1.6 kW |
| Cooling output L35 L35/60 Hz | 1.6 kW |
| Cooling output L35 L50/50 Hz | 1.08 kW |
| Cooling output L35 L50/60 Hz | 1.18 kW |
| Benefits | May be linked to the IoT interface via the Blue e IoT adapter for cooling units with an output of 500 W or higher and e-comfort controllers |
| Material | Carbon steel |
| Color | RAL 7035 |
| Rated operating voltage | 400 V, 3~, 50 Hz |
| Note | Trim frame 3377.000 incl. assembly components can be fitted when mounting the cooling unit. This gives the cooling unit a closed appearance. |
| Version | wall-mounted |
| Special design | Flat |
| Protection category IP to EN 60 529 | External circuit, IP 34 |
| Protection category NEMA | UL Type 12 |
| Temperature control | e-Comfort Controller (factory setting +35 °C) |
| Operating temperature range | 10 °C...55 °C |
| Storage temperature range | -40 °C...70 °C |
| Setting range | 20 °C...55 °C |
| Permissible operating pressure (p. max.) | 28 bar |
| Pre-fuse | Motor circuit-breaker: 6.3...10 A |
| Weight/packaging unit | 46 kg |
| Customs tariff number | 84158200 |
| EAN | 4028177429727 |
| ETIM 7.0 | EC000855 |
| ECLASS 8.0 | 27180704 |
