Official DistributorBy SMC
SKU
Weight
0.184 kg
This item is subject to International Priority Direct (IPD) charges

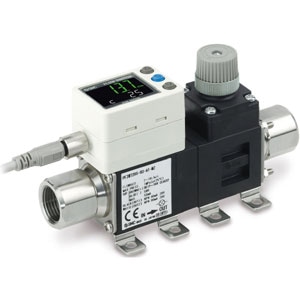

DIGITAL FLOW SWITCH
Documents
Configure Product
Technical Specifications
| Rated Flow Range | 20 (2 to 16 L/min) |
| Flow Adjustment Valve | w/o Flow Adjustment Valve |
| Thread | Rc |
| Port Size | 04 (1/2) |
| Output Specification/Temperature Sensor | CT (Out 1: NPN; Out 2: Flow Rate: Analog 1 to 5 V ? Analog 1 to 5 V; Temperature Sensor: Yes) |
| Lead Wire | w/Lead Wire and M8 Connector, 3 m |
| Unit Specification | M (Instantaneous Flow: L/min, Accumulated Flow: L,Temperature: °C) |
| Bracket | R (w/Bracket) |
| Calibration Certificate | None |
Why Proax for SMC PF3W720-04-CT-MRZ?
Proax is the Elite distributor of SMC PF3W720-04-CT-MRZ and one of SMC's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | PF3W72004CTMRZ |
| Pack Size | 1 |
