3239110
By Rittal
RIT3239110
Series TopTherm Filter Fan Units

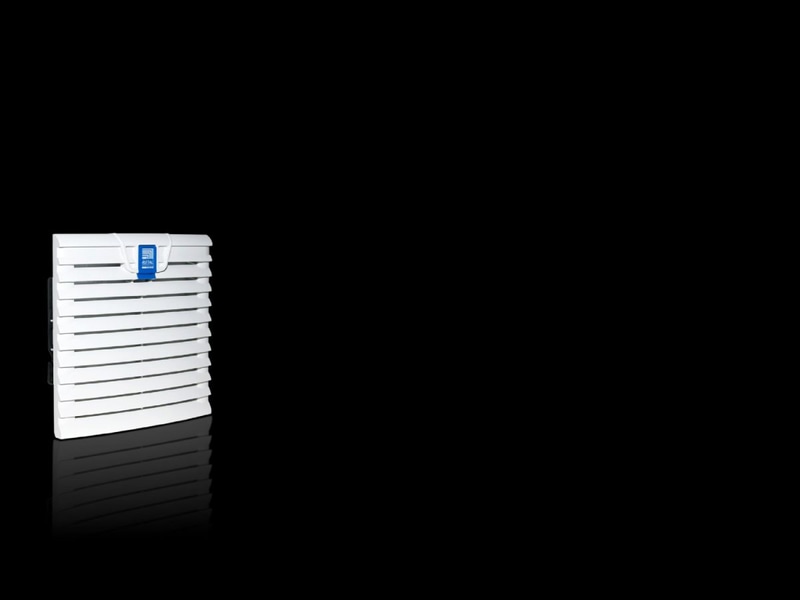

Official DistributorSK fan and filter units TopTherm, 105/120 m³/h, 115 V, 1~, 50/60 Hz, WHD: 204 x 204 x 24 mm
Supply includes
Complete unit ready for connection, including filter mat
Documents
TopTherm Filter Fan Units
Complete fan unit for tool-free mounting on surfaces. Air throughput from 20 - 900 m³/h, protection category IP 54 as standard.
Technical Specifications
Air throughput (unimpeded air flow)
| Air throughput at 50 Hz | 105 m³/h |
| Air throughput at 60 Hz | 120 m³/h |
Dimensions
| Width | 204 mm |
| Height | 204 mm |
Installation dimensions
| Build depth | 24 mm |
| Installation depth | 90 mm |
Mounting cut-out
| Width of opening | 177 mm |
| Cut-out height | 177 mm |
Noise pressure level
| At 50 Hz | 46 dB(A) |
| At 60 Hz | 49 dB(A) |
Protection category IP to IEC 60 529
| Protection category IP to IEC 60 529 | IP 54 |
| with standard filter and additional fine filter mat | IP 55 |
| with standard filter and hose-proof hood | IP 56 |
Protection category NEMA
| Standard | Type 12 |
| with standard filter and additional fine filter mat | Type 12 |
| with standard filter and hose-proof hood | Type 3, 3R, 4, 4X |
Rated current max.
| At 50 Hz | 0.24 A |
| At 60 Hz | 0.22 A |
Rated power Pel
| At 50 Hz | 19 W |
| At 60 Hz | 18 W |
Service life of fans (L10, 40 °C))
| At 50 Hz | 68,200 h |
| At 60 Hz | 68,200 h |
| Color | RAL 7035 |
| Fan | Axial, shaded pole motor |
| Air throughput with outlet filter, including standard filter mat (quantity x order number) | 1 x 3239200: 87/100 m³/h |
| Rated operating voltage | 115 V, 1~, 50 Hz/60 Hz |
| Note | For the 3237.XXX filter fan, the electrical connection is made via 2 individual wires (length approx. 300 mm) on the unit, for all other filter fans, it’s made via a spring-loaded terminal |
| Pre-fuse | Miniature circuit-breaker/fuse: 2 A |
| Operating temperature range | -15 °C...55 °C |
| Storage temperature range | -30 °C...70 °C |
| Weight/packaging unit | 1.04 kg |
| Customs tariff number | 84145915 |
| EAN | 4028177651838 |
| ETIM 7.0 | EC000320 |
| ECLASS 8.0 | 27180716 |
