Featured
3238200
By Rittal
RIT3238200
Series Outlet Filters Standard

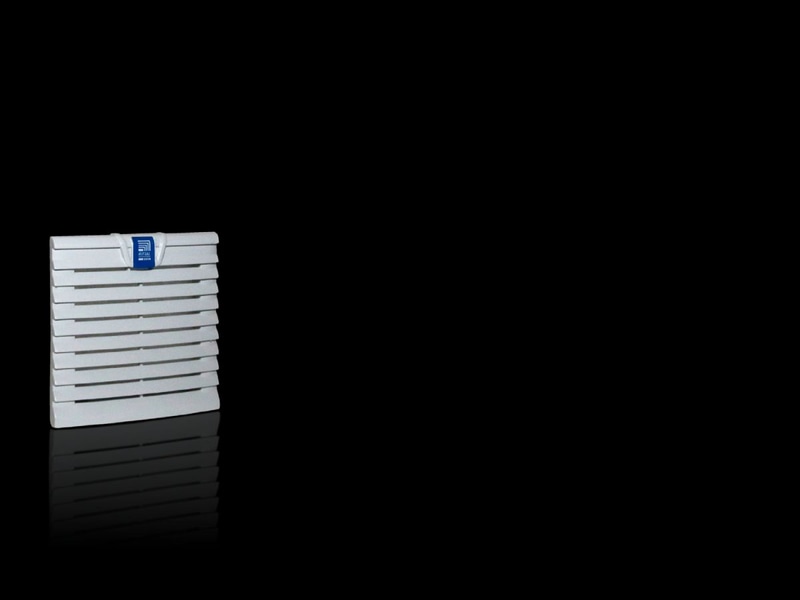

Official DistributorSK outlet filter, Standard, WHD: 148.5 x 148.5 x 24 mm
Supply includes
Outlet Filters
Filter Mat
Documents
Outlet Filters Standard
For ventilation by convection, an outlet filter can be installed in the upper and lower sections of the enclosure.
Technical Specifications
Dimensions
| Width | 148.5 mm |
| Height | 148.5 mm |
| Depth | 24 mm |
Mounting cut-out
| Width of opening | 124 mm |
| Cut-out height | 124 mm |
| Material | ABS |
| Color | RAL 7035 |
| Protection category IP to IEC 60 529 | IP 54 including filter mat |
| Weight/packaging unit | 0.18 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177651739 |
| ETIM 7.0 | EC002513 |
| ECLASS 8.0 | 27180706 |
