Series Outlet Filters EMC

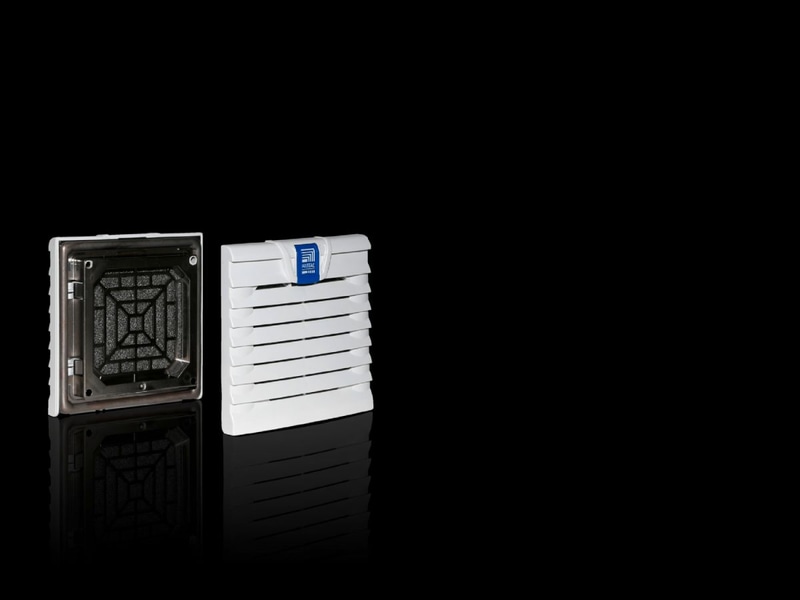

SK outlet filter, EMC, WHD: 116.5 x 116.5 x 16 mm
Supply includes
Outlet Filters
Filter Mat
Outlet Filters EMC
For ventilation by convection, an outlet filter can be installed in the upper and lower sections of the enclosure.
Technical Specifications
Dimensions
| Width | 116.5 mm |
| Height | 116.5 mm |
| Depth | 16 mm |
Mounting cut-out
| Width of opening | 92 mm |
| Cut-out height | 92 mm |
| Material | ABS |
| Color | RAL 7035 |
| Protection category IP to IEC 60 529 | IP 54 including filter mat |
| Weight/packaging unit | 0.146 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177651555 |
| ETIM 7.0 | EC002513 |
| ECLASS 8.0 | 27180706 |
Why Proax for Rittal 3237060?
Proax is an authorized distributor of Rittal 3237060 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
