Official DistributorBy Rittal
SKU
Weight
3.2 kg

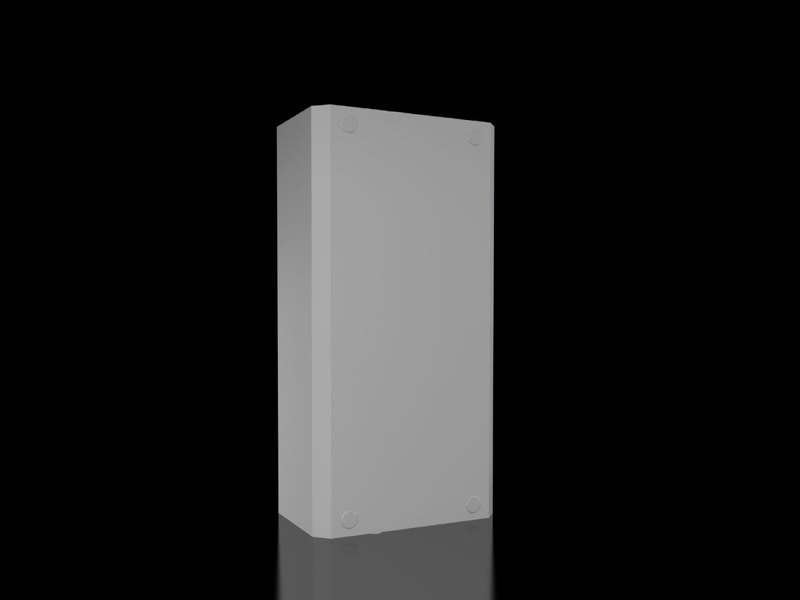

SK Air/water heat exchanger, wall-mounted, 0.3 kW, 24 V (DC), Water-carrying parts: copper/brass , WHD: 150 x 300 x 85 mm
Supply includes
Wired ready for connection
Drilling template
Sealing and assembly components
Air/Water Heat Exchangers wall-mounted
Output categories 375 – 5,000 W. For use in tough environments. Convenient mounting options and flexible water connection options. External mounting or full internal mounting possible.
Technical Specifications
Dimensions
| Width | 150 mm |
| Height | 300 mm |
| Depth | 85 mm |
Total cooling output
| L 35 W 10 at 200 l/h | 0.3 kW |
| Version | Water-carrying parts copper/brass (Cu/CuZn) |
| Color | RAL 7035 |
| Rated operating voltage | 24 V (DC) |
| Rated current max. | with DC: 1.2 A |
| Permissible operating pressure (p. max.) | 1 ‐ 10 bar |
| Duty cycle | 100 % |
| Cooling medium | Water (see Internet for specifications) |
| Water inlet temperature | 1 °C...30 °C |
| Water connections | ⅜" connector sleeve |
| Operating temperature range | 1 °C...70 °C |
| Note | Integral non-return valve for version with e-Comfort controller |
| Pre-fuse | Miniature circuit-breaker/fuse: 4 A |
| Setting range | 20 °C...55 °C |
| Protection category IP to EN 60 529 | IP 55 |
| Weight/packaging unit | 3.2 kg |
| Customs tariff number | 84158300 |
| EAN | 4028177430921 |
| ETIM 7.0 | EC002515 |
| ECLASS 8.0 | 27180712 |
Why Proax for Rittal 3212024?
Proax is an authorized distributor of Rittal 3212024 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
