Official DistributorBy Rittal
SKU
Weight
1.22 kg
Series Enclosure Heater with fan

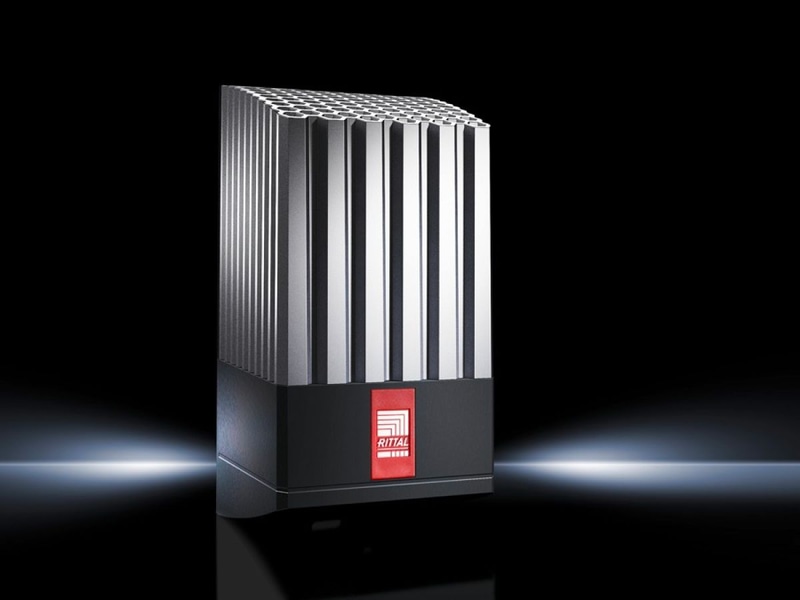

SK enclosure heater, with fan, 800/870 W, 230 V, 1~, 50/60 Hz, WHD: 103 x 200 x 103 mm
Supply includes
PTC heater with fan
Fasteners
Enclosure Heater with fan
Enclosure heaters to regulate relative humidity, prevent temperatures from dropping below the dew point and stop condensation forming inside the enclosure. This prevents consequential damage associated with corrosion or electrical short circuits. Version with fan. Continuous thermal output 235 – 800 W.
Technical Specifications
Dimensions
| Width | 103 mm |
| Height | 200 mm |
| Depth | 103 mm |
| Material | Plastic |
| Continuous thermal output | Continuous thermal output with fan |
| Integrated fan | Yes |
| Note | A thermostat is recommended for precise temperature control inside the enclosure |
| Continuous thermal output at 10 °C | 800 W ‐ 870 W |
| Rated operating voltage | 230 V, 1~, 50 Hz/60 Hz |
| Pre-fuse | Miniature circuit-breaker/fuse: 6 A |
| Protection category IP to IEC 60 529 | IP 20 |
| Protection category | II (total insulation) |
| Weight/packaging unit | 1.22 kg |
| Customs tariff number | 85162999 |
| EAN | 4028177662889 |
| ETIM 7.0 | EC000737 |
| ECLASS 8.0 | 27180710 |
Why Proax for Rittal 3105400?
Proax is an authorized distributor of Rittal 3105400 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
