Official DistributorBy Rittal
SKU
Weight
4.54 kg
This product is Not Cancellable/Not Returnable
Series Busbar Supports

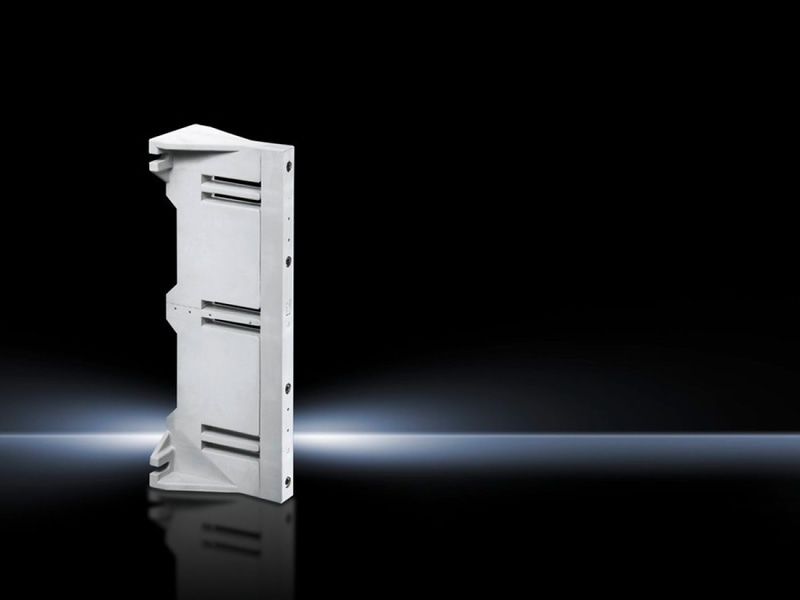

SV Busbar support, 3-pole, 150 mm bar centre distance, for busbar WH: 80x10 mm
Busbar Supports
For the attachment of Maxi-PLS busbars, by inserting into the supports, 2-part.
Technical Specifications
Dimensions
| Width | 30 mm |
| Height | 420 mm |
| Depth | 160 mm |
| Material | Fiberglass-reinforced, thermoplastic polyester (PBT) Fire protection corresponding to UL 94-V0 |
| Color | RAL 7035 |
| No. of poles/bar center distance | 3-pole 150 mm |
| Suitable for busbars | 60 x 10 mm |
| Rated current max. | 2,500 A |
| Packaging unit | 2 pc(s). |
| Weight/packaging unit | 4.54 kg |
| Customs tariff number | 85469010 |
| EAN | 4028177035782 |
| ETIM 7.0 | EC001166 |
| ECLASS 8.0 | 27400607 |
Why Proax for Rittal 3055000?
Proax is an authorized distributor of Rittal 3055000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
