Series Post Isolator

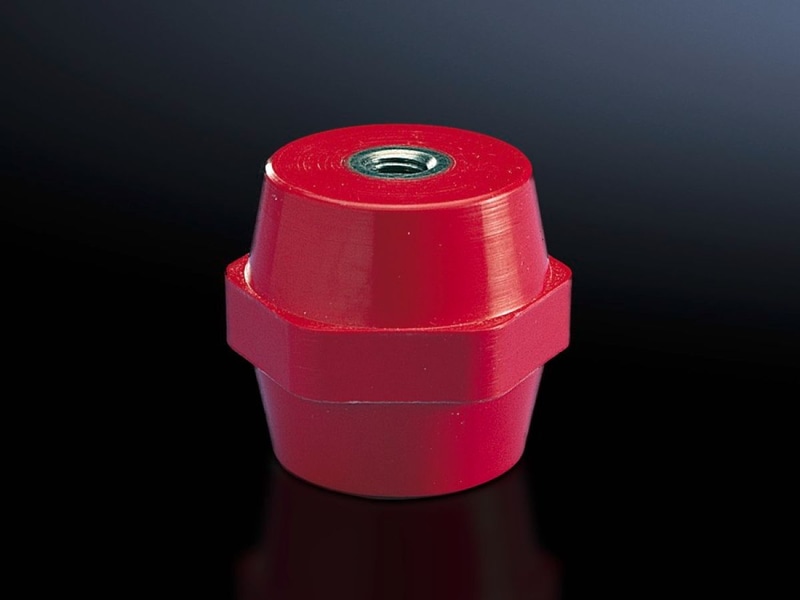

SV Base isolator, H: 40 mm, thread M10
Post Isolator
For configuring busbar systems with any given bar center distances and for assembling insulated PE or PEN busbars.
Technical Specifications
| Material | Duroplastic polyester (UP resin) |
| Dimensions | Thread: M10 |
| Bending strength | 6 kN |
| Torsional strength | 75 Nm |
| Tensile strength | 12 kN |
| Packaging unit | 6 pc(s). |
| Weight/packaging unit | 0.552 kg |
| Customs tariff number | 85469010 |
| EAN | 4028177035270 |
| ETIM 7.0 | EC002357 |
| ECLASS 8.0 | 23119201 |
