2787000
Official DistributorBy Rittal
SKU
RIT2787000
Weight
2.4 kg
This product is Not Cancellable/Not Returnable

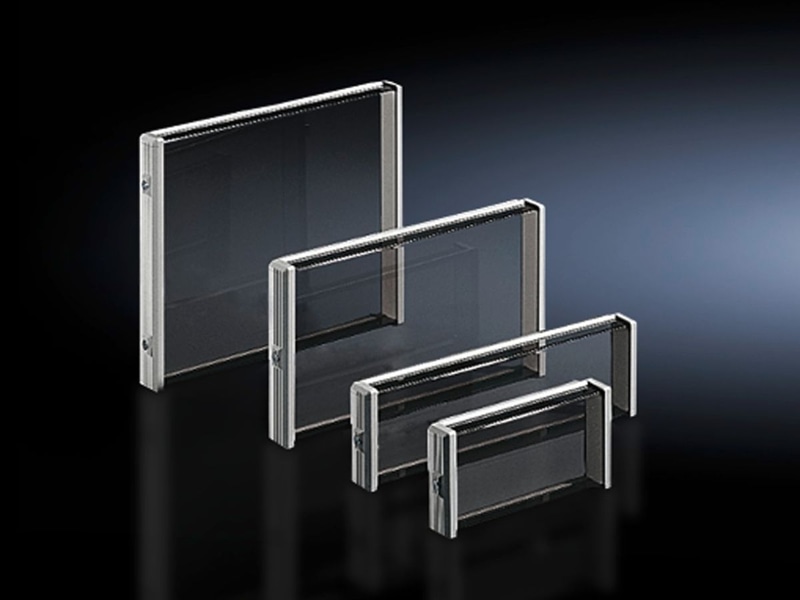

FT Acrylic glazed cover, 482.6 mm (19"), WHD: 500x400x47,5 mm
Supply includes
Hinges and assembly components.
Incl. lock insert # 3524 E
Technical Specifications
Dimensions
| Width | 500 mm |
| Height | 400 mm |
| Depth | 47.5 mm |
Material
| Frame | Extruded aluminum sections with die-cast corner pieces |
| Glass panel | Smoked acrylic |
Viewing window
| Viewing window width | 460 mm |
| Viewing window height | 379.5 mm |
| Version | metric |
| Protection category IP to EN 60 529 | IP 54 |
| Build depth for components (max.) | 43 mm |
| Weight/packaging unit | 2.4 kg |
| Customs tariff number | 39269097 |
| EAN | 4028177032330 |
| ETIM 7.0 | EC002527 |
| ECLASS 8.0 | 27182301 |
Why Proax for Rittal 2787000?
Proax is an authorized distributor of Rittal 2787000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
