2740000
Official DistributorBy Rittal
SKU
RIT2740000
Weight
1.7 kg
This product is Not Cancellable/Not Returnable

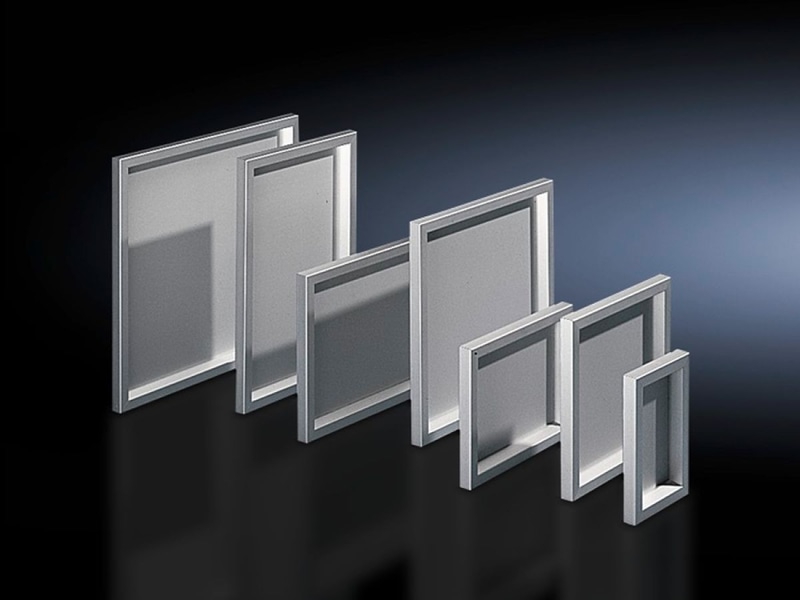

FT Operating panel, WHD: 197x297x34 mm, for WH: 200x300 mm
Supply includes
Aluminum frame
Display panel
Hinges
Brackets
Technical Specifications
Area available for population
| Width | 127 mm |
| Height | 227 mm |
Dimensions
| Width | 197 mm |
| Height | 297 mm |
| Depth | 34 mm |
Dimensions of aluminium plate
| Width | 143 mm |
| Height | 243 mm |
Suitable for
| Enclosure Type | AE |
| Width | = 200 mm |
| Height | = 300 mm |
| Material | Aluminum, natural anodized |
| Protection category IP to EN 60 529 | IP 54 |
| Note | During installation, the cam lock is required in place of the door |
| Note on Model No. | With AE, only for use on the rear panel |
| Weight/packaging unit | 1.7 kg |
| Customs tariff number | 76169990 |
| EAN | 4028177031838 |
| ETIM 7.0 | EC000747 |
| ECLASS 8.0 | 27182204 |
Why Proax for Rittal 2740000?
Proax is an authorized distributor of Rittal 2740000 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
