2695500
Official DistributorBy Rittal
SKU
RIT2695500
Weight
80 kg
This item is ineligible for free shipping due to its size/weight.

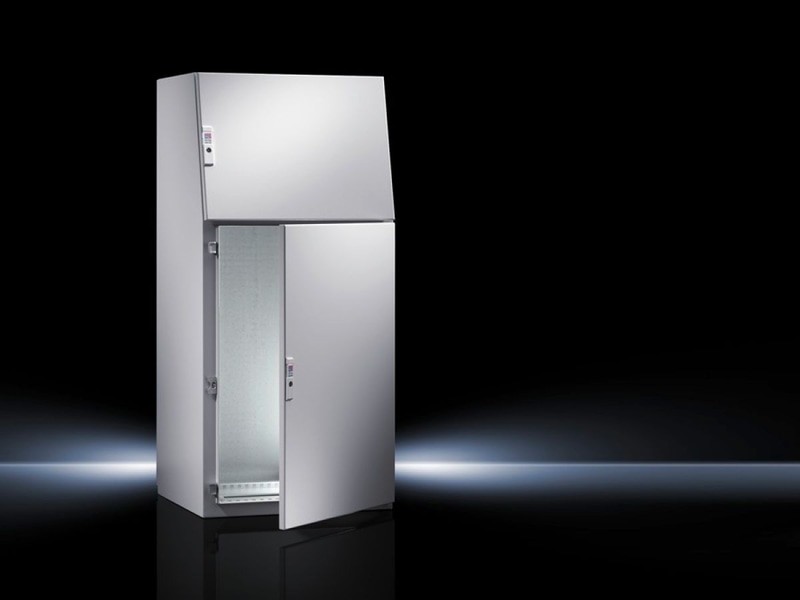

TP Universal console, WHD: 600x1300x500 mm, Sheet steel, with tall front door
Supply includes
Housing with door(s)
Mounting plate
Base Plates
Technical Specifications
Dimensions
| Width | 600 mm |
| Height | 1,300 mm |
| Depth (top) | 417.5 mm |
| Depth (bottom) | 500 mm |
Material
| Housing, base plates | Carbon steel, 1.5 mm |
| Door | Carbon steel, 2.0 mm |
| Mounting plate | Carbon steel, 3.0 mm |
Mounting plate
| Width | 499 mm |
| Height | 1,196 mm |
Surface finish
| Housing and door | Dipcoat primed, powder-coated on the outside, textured paint |
| Mounting plate and base plates | Zinc-plated |
| Version | with tall front door |
| Product modification | The universal console comes with the new mounting plate from the baying enclosure system VX25. |
| Color | RAL 7035 |
| IK code | IK08 |
| Note | For universal console with short front door: To maintain the protection class, the desk section must be assembled. |
| Base material | Carbon steel |
| Protection category IP to IEC 60 529 | IP 55 |
| Protection category NEMA | NEMA 12 |
| Weight/packaging unit | 80 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177031548 |
| ETIM 7.0 | EC000784 |
| ECLASS 8.0 | 27180504 |
Why Proax for Rittal 2695500?
Proax is an authorized distributor of Rittal 2695500 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
