Official DistributorBy Rittal
SKU
Weight
0.295 kg
Series Ground Straps

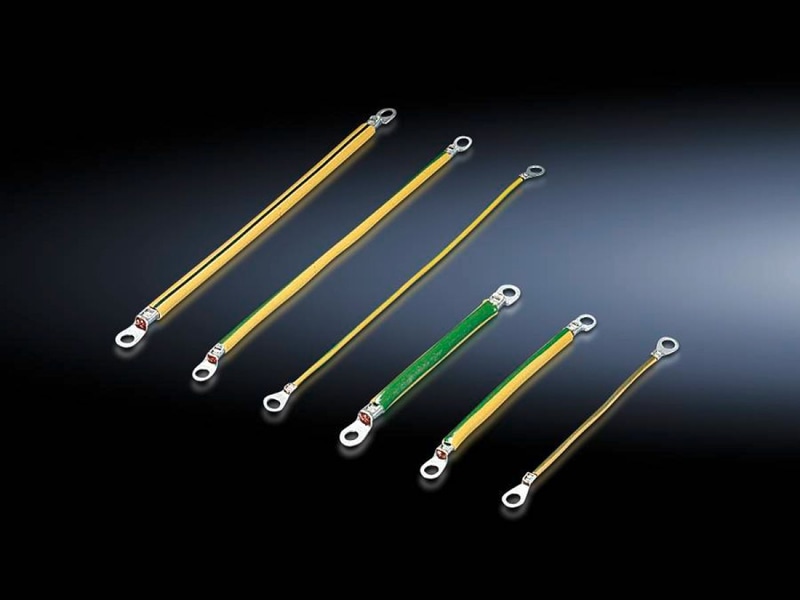

SZ Earth strap, connection: M8-M8, for diameter 16 mm², L: 300 mm
Ground Straps
To configure a reliable grounding connection with perfect contact: with ring terminals in M6 and M8 to match the grounding screws, length-optimized and ready to install.
Technical Specifications
Dimensions
| Length | 300 mm |
| Benefits | with ring terminals in M6 and M8 to match the grounding screws |
| Cross-section | 16 mm² |
| Connection | M8 – M8 |
| Installation options | Connection options for AX: Door/cover M8, enclosure M8, mounting plate M8 |
| Note | Please refer to the installation instructions or equipment grounding conductor brochure of the respective enclosure or housing system. |
| Packaging unit | 5 pc(s). |
| Weight/packaging unit | 0.295 kg |
| Customs tariff number | 85444290 |
| EAN | 4028177027954 |
| ETIM 7.0 | EC000839 |
| ECLASS 8.0 | 27062302 |
