2482220
Official DistributorBy Rittal
SKU
RIT2482220
Weight
0.1 kg

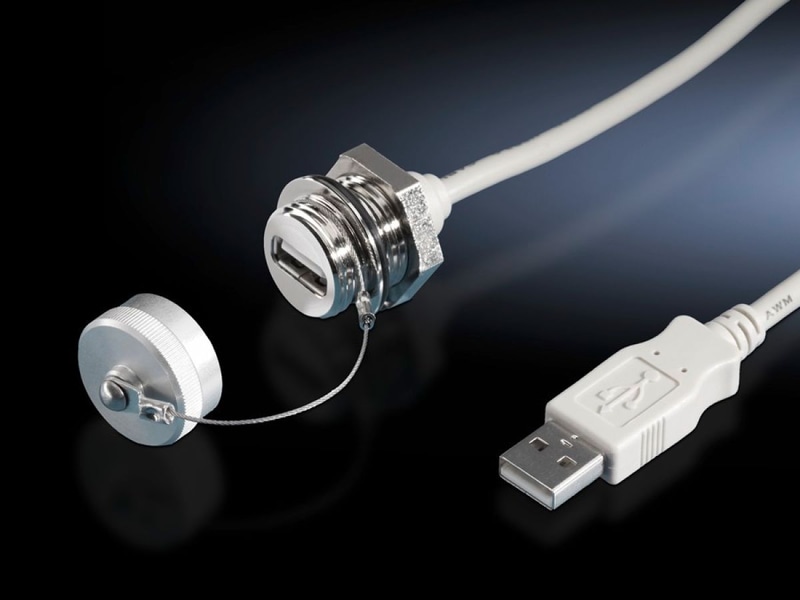

SZ Interface extension, with wallconnection, USB, L: 1000 mm
Interface extension with wall connection
To extend the internal housing interfaces – e.g. from industrial PCs and switches – to the outside of the enclosure.
Technical Specifications
Dimensions
| Length | 1 m |
Material
| Housing | Brass |
| Cover | Aluminum |
| Seal | Polyamide |
Surface finish
| Housing | Nickel-plated |
| Cover | Natural anodized |
| Version | USB 2.0 type A wall-mounted jack on type A internal connector |
| Benefits | Rapid access for maintenance work |
| Length | 1 m |
| For wall thickness (max.) | 1 ‐ 6 mm |
| Protection category IP to IEC 60 529 | IP 66/67 with the protective cap closed |
| Weight/packaging unit | 0.1 kg |
| Customs tariff number | 85369095 |
| EAN | 4028177516328 |
| ETIM 7.0 | EC001408 |
| ECLASS 8.0 | 19059205 |
