2384040
Official DistributorBy Rittal
SKU
RIT2384040
Weight
1.1 kg

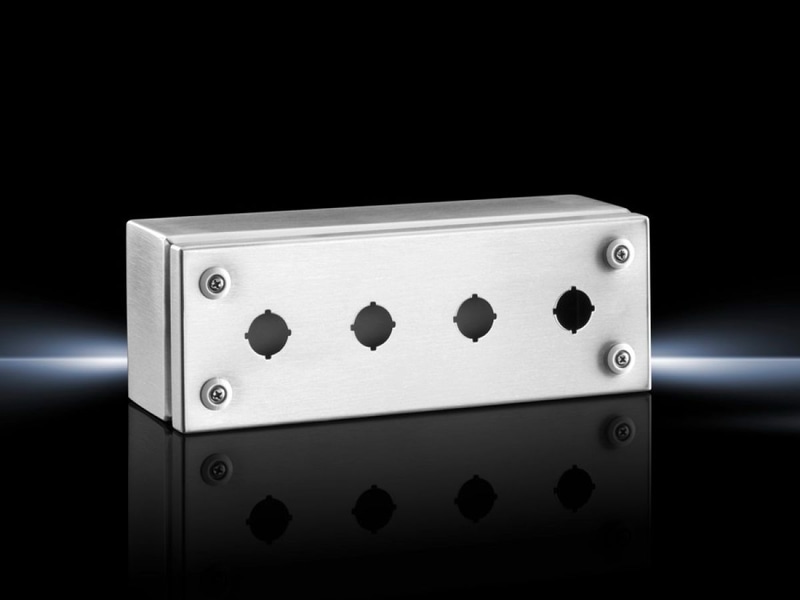

SM Switch housing, WHD: 280x100x90 mm, Stainless steel 1.4301, without mounting plate, 4 switch cut-outs
Supply includes
Housing with cover
Quick-release fasteners including plastic bushings
Technical Specifications
Dimensions
| Width | 280 mm |
| Height | 100 mm |
| Depth | 90 mm |
Lock
| Lock version | Quick-release fasteners including plastic bushings |
| Number locks | 4 |
Material
| Housing | Stainless steel 1.4301 (AISI 304) |
| Cover | Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal |
| Surface finish | Housing and cover: Brushed, grain 240 |
| Protection category NEMA | NEMA 4X |
| Protection category IP to EN 60 529 | IP 66 |
| Material thickness - Cover | 1.25 mm |
| Material thickness - enclosure | 1.25 mm |
| Pitch pattern | 60 mm |
| Number of switch cut-outs Ø 22.5 mm. | 4 |
| Base material | Stainless steel |
| Weight/packaging unit | 1.1 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177529441 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 2384040?
Proax is an authorized distributor of Rittal 2384040 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
