2340700
Official DistributorBy Rittal
SKU
RIT2340700
Weight
13.5 kg

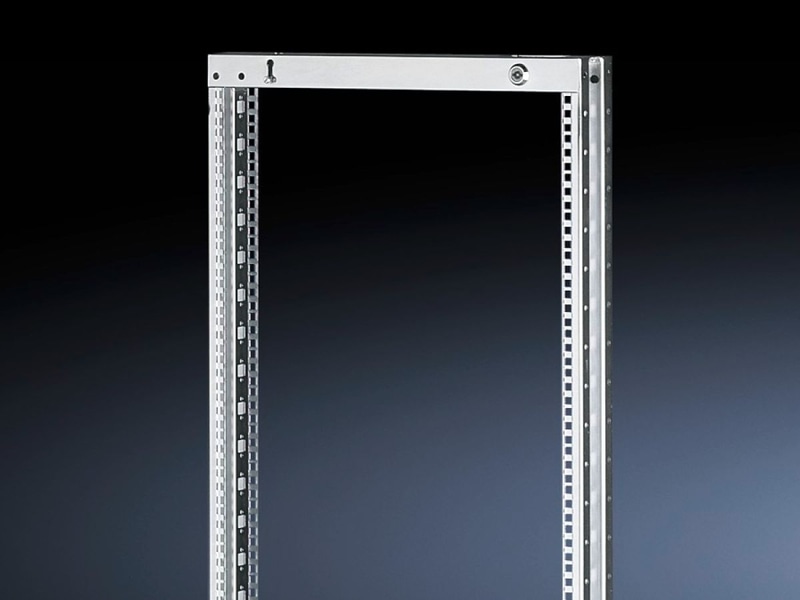

SR Swing frame, large, without trim panel, for TS, VX SE, for W: 600/1200 mm, 40 U
Supply includes
Cam with double-bit lock insert
Parts for attaching to the installation kit
Pivoting Frame, large, without trim panel for TS, SE, 600 mm and 1200 mm wide enclosures
For 600 mm and 1200 mm wide enclosures, 22 - 45 U, without trim panel, to mount 482.6 mm (19") equipment.
Technical Specifications
Suitable for
| Enclosure Type | TS |
| Width | = 600 mm |
| Height | ≥ 2,000 mm |
| Material | Carbon steel |
| Surface finish | Zinc-plated |
| Mounting tip | Depending on the installation situation TS punched sections with mounting flange, 23 x 73 mm, or TS punched sections with mounting flange, 17 x 73 mm are required |
| Note | see "Technical Details" for other expansion options |
| Height units | 40 U |
| Weight/packaging unit | 13.5 kg |
| Customs tariff number | 94039910 |
| EAN | 4028177021679 |
| ETIM 7.0 | EC002620 |
| ECLASS 8.0 | 27189261 |
Why Proax for Rittal 2340700?
Proax is an authorized distributor of Rittal 2340700 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
