1584010
Official DistributorBy Rittal
SKU
RIT1584010
Weight
3.7 kg
This product is Not Cancellable/Not Returnable

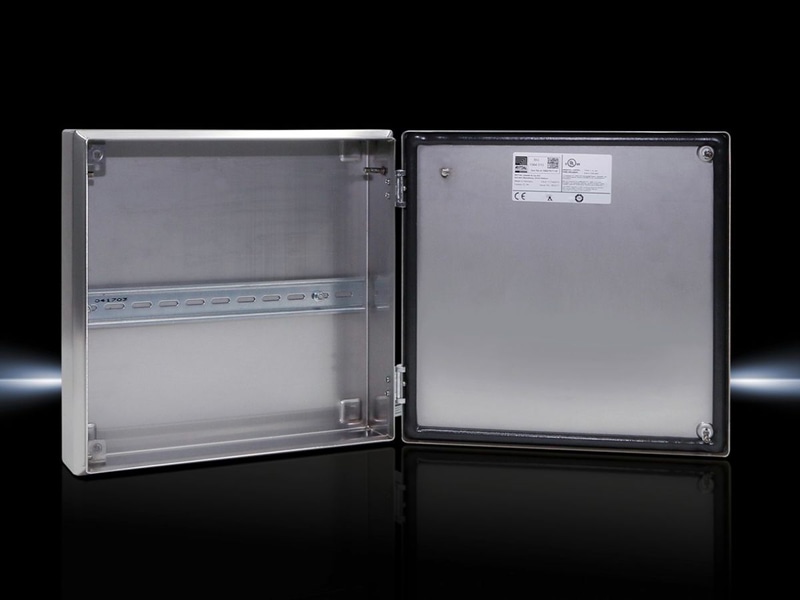

BG Bus enclosure, WHD: 300x300x80 mm, Stainless steel 1.4301, without mounting plate, with cover, with support rail
Supply includes
Housing with cover
180° hinges (2 pcs)
Support rail TS 35/7.5
Quick-release fasteners including plastic bushings
Technical Specifications
Dimensions
| Width | 300 mm |
| Height | 300 mm |
| Depth | 80 mm |
Lock
| Lock version | Quick-release fasteners including plastic bushings |
| Number locks | 2 |
Material
| Housing | Stainless steel 1.4301 (AISI 304) |
| Cover | Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal |
| 180° hinges | Die-cast zinc |
Surface finish
| Housing and cover | Brushed, grain 240 |
| 180° hinges | Chrome-plated |
| Protection category NEMA | NEMA 4X |
| Protection category IP to EN 60 529 | IP 66 |
| Material thickness - enclosure | 1.5 mm |
| Material thickness - Door | 1.25 mm |
| Design support rails | attached to studs |
| Door hinge position | right/left |
| Number of support rails | 1 |
| Base material | Stainless steel |
| Weight/packaging unit | 3.7 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177010970 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
