1558010
Official DistributorBy Rittal
SKU
RIT1558010
Weight
4.5 kg

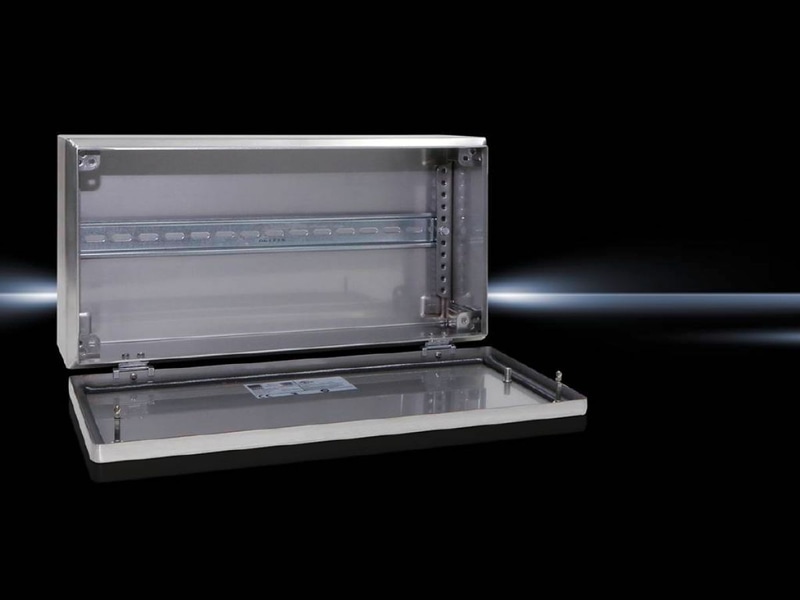

BG Bus enclosure, WHD: 400x200x123 mm, Stainless steel 1.4301, without mounting plate, with cover, with support rail
Supply includes
Housing with cover
180° hinges (2 pcs)
Support rail TS 35/7.5
Quick-release fasteners including plastic bushings
Technical Specifications
Dimensions
| Width | 400 mm |
| Height | 200 mm |
| Depth | 123 mm |
Lock
| Lock version | Quick-release fasteners including plastic bushings |
| Number locks | 2 |
Material
| Housing | Stainless steel 1.4301 (AISI 304) |
| Cover | Stainless steel 1.4301 (AISI 304), all-round foamed-in PU seal |
| 180° hinges | Die-cast zinc |
Surface finish
| Housing and cover | Brushed, grain 240 |
| 180° hinges | Chrome-plated |
| Protection category NEMA | NEMA 4X |
| Protection category IP to EN 60 529 | IP 66 |
| Material thickness - enclosure | 1.5 mm |
| Material thickness - Door | 1.25 mm |
| Design support rails | adjustable on profile strip |
| Door hinge position | bottom |
| Number of support rails | 1 |
| Base material | Stainless steel |
| Weight/packaging unit | 4.5 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177009912 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 1558010?
Proax is an authorized distributor of Rittal 1558010 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
