1550500
Official DistributorBy Rittal
SKU
RIT1550500
Weight
5 kg

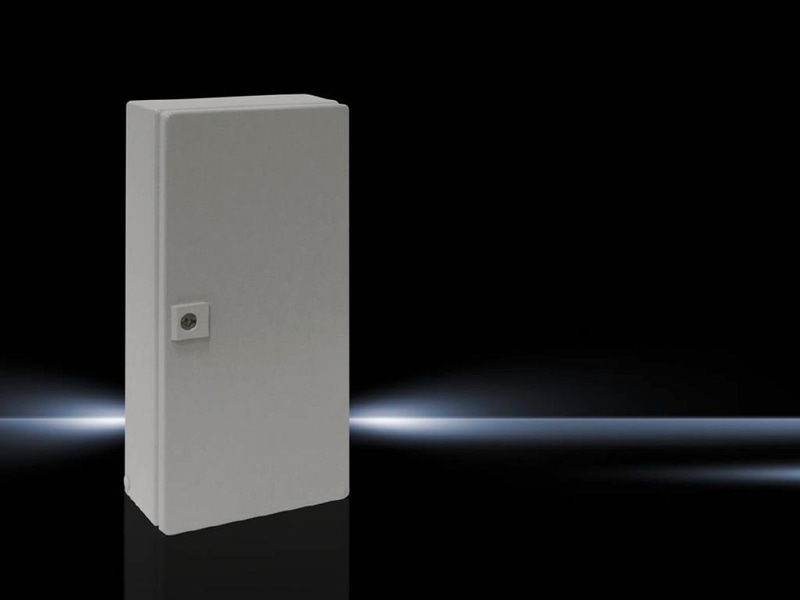

EB E-Box, WHD: 200x400x120, Sheet steel, with mounting plate, with door
Supply includes
Housing with hinged door
180° hinge
Cam lock with 3 mm double-bit insert
Mounting plate
Technical Specifications
Dimensions
| Width | 200 mm |
| Height | 400 mm |
| Depth | 120 mm |
Lock
| Lock version | Cam |
| Number locks | 1 |
| Lock Insert | 3 mm double-bit |
Mounting plate
| Width | 175 mm |
| Height | 385 mm |
Surface finish
| Housing and door | Dipcoat primed, powder-coated on the outside, textured paint |
| Mounting plate | Zinc-plated |
| Material | Housing and door: Carbon steel, all-round foamed-in PU seal |
| Color | RAL 7035 |
| Protection category NEMA | NEMA 4 |
| Protection category IP to EN 60 529 | IP 66 |
| IK code | IK08 |
| Material thickness - enclosure | 1.25 mm |
| Material thickness - Door | 1.25 mm |
| Material thickness – mounting plate | 2 mm |
| Base material | Carbon steel |
| Weight/packaging unit | 5 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177251748 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 1550500?
Proax is an authorized distributor of Rittal 1550500 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
