SKU
Weight
23 kg
Series Wallmounted enclosure

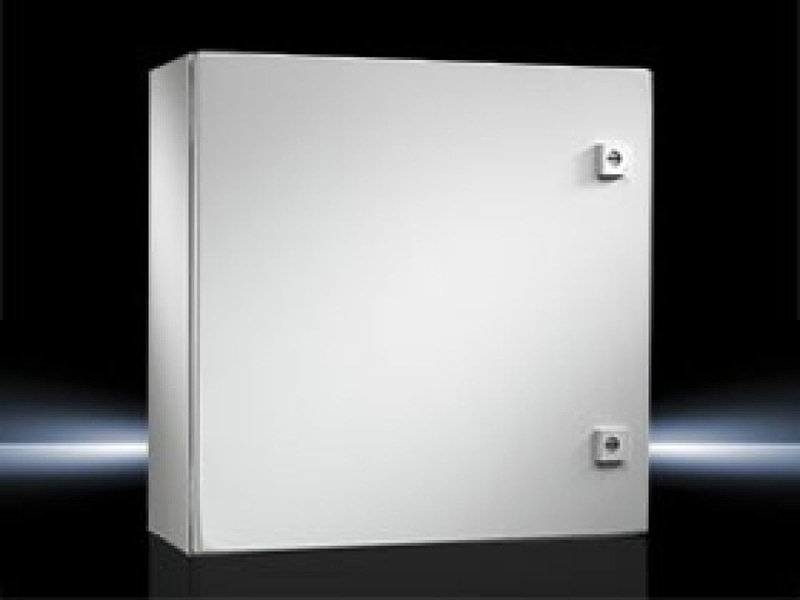

WM242408NC Enclosure, 24Hx24Wx8"D, Hinged, w/ backplate, Nema 1/12/3R/4, MTL, LT.GRY. These single door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a cold rolled steel body and door, and a zinc plated mounting panel.
Wallmounted enclosure
These single door wallmount enclosures can be used for virtually any application. The WM series ensures NEMA protection through a secure locking system, foamed-in-place gasket, and knife-edge sealing surface. Features include a cold rolled steel body and door, and a zinc plated mounting panel.
Technical Specifications
Dimensions
| Width | 600 mm |
| Height | 600 mm |
| Depth | 210 mm |
Material
| Door | Carbon steel, all-round foamed-in PU seal |
| Housing | Carbon steel |
Mounting plate
| Width | 549 mm |
| Height | 570 mm |
Surface finish
| Housing and door | Dipcoat primed, powder-coated on the outside, textured paint |
| Mounting plate | Zinc-plated |
| Model no. | WM242408NC |
| Color | RAL 7035 |
| Protection category NEMA | NEMA 4 |
| Material thickness - Door | 2 mm |
| Material thickness - enclosure | 1.5 mm |
| Material thickness – mounting plate | 2.5 mm |
| Weight/packaging unit | 23 kg |
| Customs tariff number | 7326908688 |
| EAN | 4028177532700 |
| UPC-Code | 83109 |
Why Proax for Rittal 1060250?
Proax is an authorized distributor of Rittal 1060250 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
