1018600
Official DistributorBy Rittal
SKU
RIT1018600
Weight
71 kg
This product is Not Cancellable/Not Returnable
This item is ineligible for free shipping due to its size/weight.

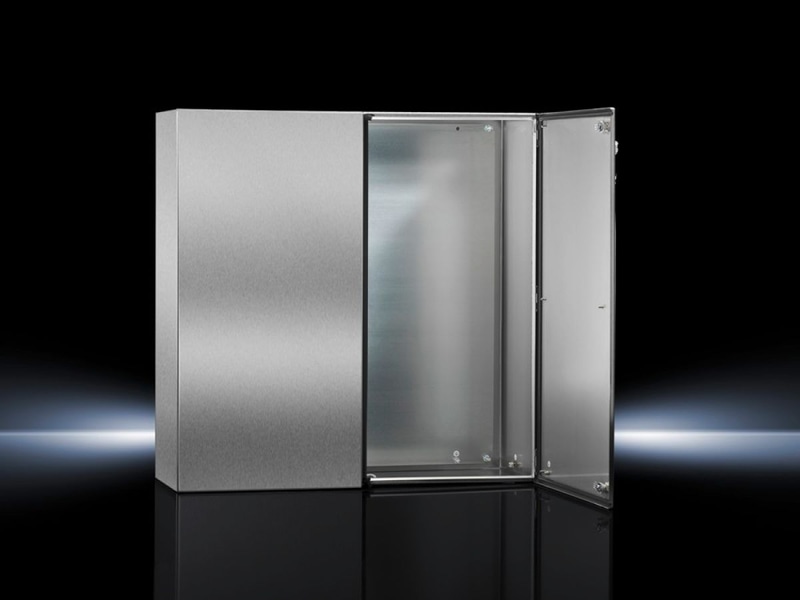

AE Compact enclosure, WHD: 1000x1000x300 mm, Stainless steel 1.4301, with mounting plate, two-door, with two cam locks
Supply includes
Housing with door(s)
Mounting plate
Lock: 3 mm double-bit
Compact enclosures AE Stainless steel
Compact enclosure AE in stainless steel including mounting plate. AE stainless steel series from Rittal have been replaced by the AX stainless steel series.
Technical Specifications
Dimensions
| Width | 1,000 mm |
| Height | 1,000 mm |
| Depth | 300 mm |
Lock
| Lock version | Cam |
| Number locks | 2 |
| Lock Insert | 3 mm double-bit |
| Material lock | Die-cast zinc, nickel-plated |
Material
| Housing | Stainless steel |
| Door | Stainless steel, all-round foamed-in PU seal |
| Mounting plate | Carbon steel |
Mounting plate
| Width | 939 mm |
| Height | 955 mm |
Surface finish
| Housing and door | Brushed, grain 400, peak-to-valley height < 0.8 µm |
| Mounting plate | Zinc-plated |
| Product modification | Starting in August 2016, the surface grinding is changing from 240 grain to 400 grain. The visually finer grinding pattern will enhance the cleaning properties of the housing. |
| Protection category NEMA | NEMA 12 |
| Protection category IP to EN 60 529 | IP 55 |
| IK code | IK08 |
| Number of doors | 2 |
| No. of locks | 2 |
| Base material | Stainless steel |
| Weight/packaging unit | 71 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177000650 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
