1017600
Official DistributorBy Rittal
SKU
RIT1017600
Weight
61.5 kg
This item is ineligible for free shipping due to its size/weight.

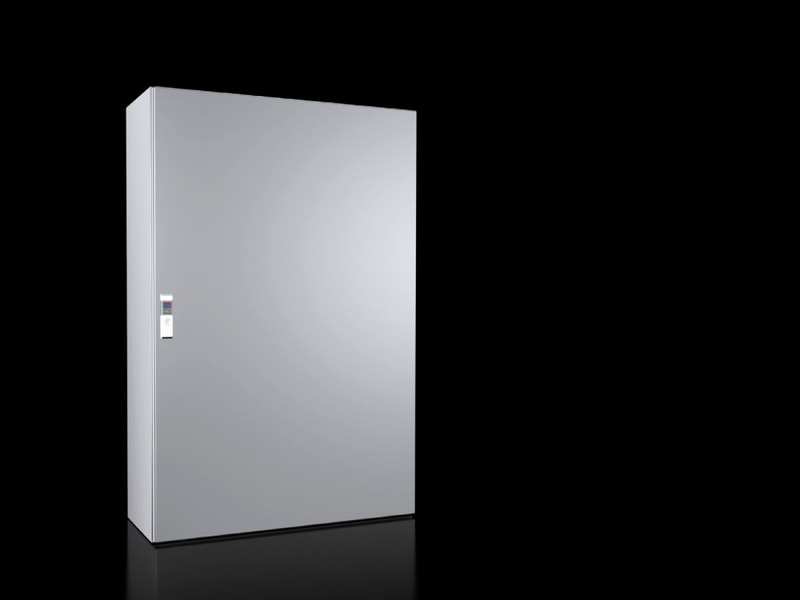

AE Compact enclosure, WHD: 800x1200x300 mm, Stainless steel 1.4301, with mounting plate, single-door, 3-point lock system
Supply includes
Housing with door(s)
Mounting plate
Lock: 3 mm double-bit
3-point locking system
Compact enclosures AE Stainless steel
Compact enclosure AE in stainless steel including mounting plate. AE stainless steel series from Rittal have been replaced by the AX stainless steel series.
Technical Specifications
Dimensions
| Width | 800 mm |
| Height | 1,200 mm |
| Depth | 300 mm |
Lock
| Lock version | 3-point locking system |
| Number locks | 1 |
| Lock Insert | 3 mm double-bit |
| Material lock | Stainless steel 1.4301 (AISI 304) |
Material
| Housing | Stainless steel |
| Door | Stainless steel, all-round foamed-in PU seal |
| Mounting plate | Carbon steel |
Mounting plate
| Width | 740 mm |
| Height | 1,155 mm |
Surface finish
| Housing and door | Brushed, grain 400, peak-to-valley height < 0.8 µm |
| Mounting plate | Zinc-plated |
| Product modification | Starting in August 2016, the surface grinding is changing from 240 grain to 400 grain. The visually finer grinding pattern will enhance the cleaning properties of the housing. |
| Protection category NEMA | NEMA 4X |
| Protection category IP to EN 60 529 | IP 66 |
| IK code | IK08 |
| Number of doors | 1 |
| Base material | Stainless steel |
| Weight/packaging unit | 61.5 kg |
| Customs tariff number | 94032080 |
| EAN | 4028177000612 |
| ETIM 7.0 | EC000261 |
| ECLASS 8.0 | 27180101 |
Why Proax for Rittal 1017600?
Proax is an authorized distributor of Rittal 1017600 and one of Rittal's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Pack Size | 1 |
