NCDA1J325-0700N-M9PWVSDPC
Official DistributorBy SMC
SKU
SMCNCDA1J3250700NM9PWVSDPC
Weight
0.004 kg

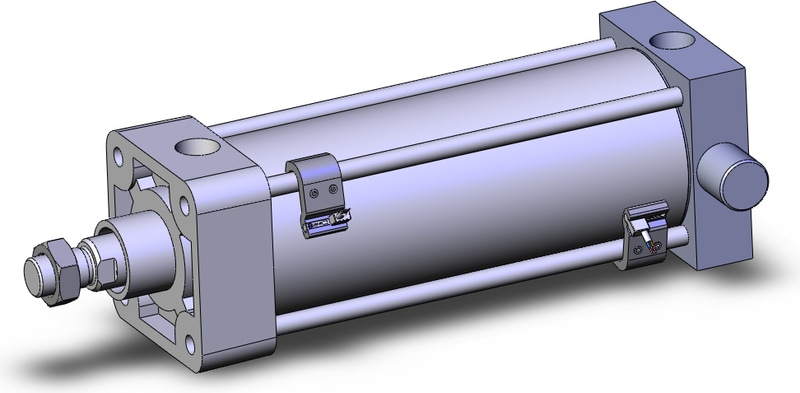

Cylinder, NCA1, Tie Rod
Technical Specifications
| Series | NCDA1 (Standard w/ Magnet) |
| Mounting | J (MT2, Head trunnion) |
| Bore Size | 325 (3 1/4") |
| Stroke | 0700 (7") |
| Air Cushion / Rod Boot | N (No Cushion) |
| Thread | Nil (Small Male, Standard, Threaded) |
| Adjustment Range | Not Applicable |
| Auto Switch | M9PWV--Solid State, 2-color Indication, 3 Wire PNP, Vertical |
| Lead Wire or Prewired Connector | SDPC (0.5m Cord Length, M12-4 Pin Connector) |
| Number | 2 pcs. (Or None in the Case of No Switch) |
| X Option | None |
Why Proax for SMC NCDA1J325-0700N-M9PWVSDPC?
Proax is the Elite distributor of SMC NCDA1J325-0700N-M9PWVSDPC and one of SMC's largest distributors in North America. Our highly skilled in-house technical team is ready to assist with any technical needs.
Have a question in mind? to help you get the right product as quickly as possible for your project. We're always here to help!
Short Lead Time
Highly Trained Staff
Live Chat
Technical Support
Local Inventory
60+ Years Experience
Additional Information
| Alternate Names | NCDA1J3250700NM9PWVSDPC |
| Pack Size | 1 |
